Verona NEO

Acoustic Signature

Turn­tables with a classic retro design are beco­ming increa­singly popu­lar. The new Verona NEO can carry up to two 9 to 12-inch tone­arms and thus offers all the possi­bili­ties that ambi­tious music lovers are looking for. In addi­tion, it has all the tech­nical refine­ments that its other brothers from the NEO series also have, such as a 2-motor drive concept, the DTD®-bearing and the exter­nal DMC-20 motor elec­tro­nics with AVC Level 3 and the CLD design. Its 50 mm thick platter includes 8 silencers.

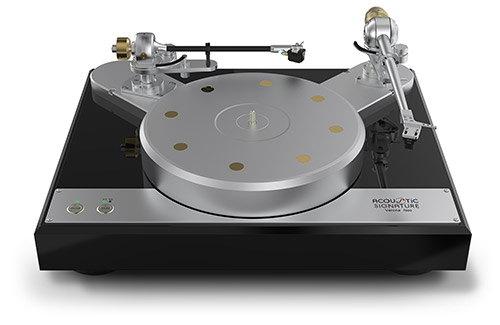

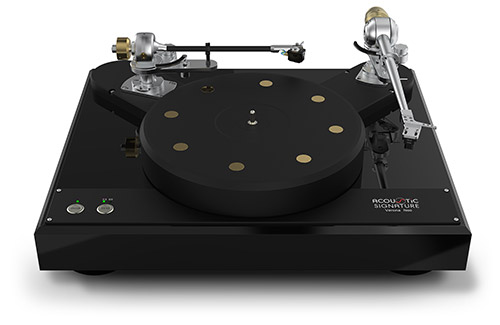

Verona NEO in piano-black

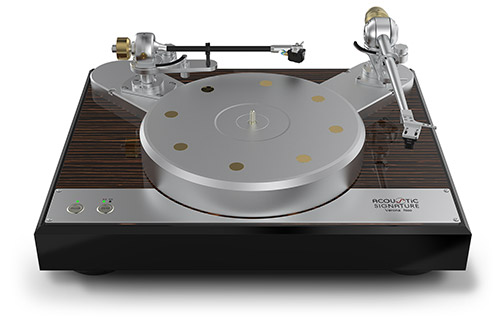

Verona NEO in makassar

Verona NEO in piano-blackmakassar

Special features:

  • Optimized multi-sandwich chassis for higher rigidity and better acoustic properties
  • Finish in piano black oder piano black with glossy Makassar top surface
  • 3-point setup with special gel-damped feet
  • 15-year warranty (with registration)

Acoustic Signature AVC - Automatic Vibration Control

Acoustic Signature CLD - Constraint Layer Damping

Acoustic Signature DTD - Dura Turn Diamond Bearing

15 year warranty

Handmade in Germany

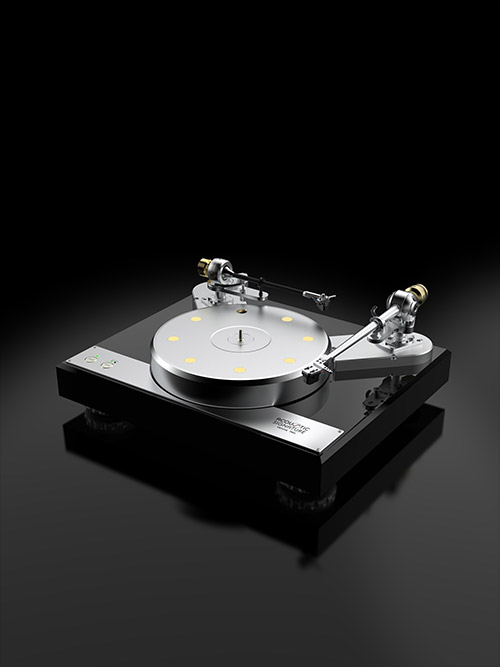

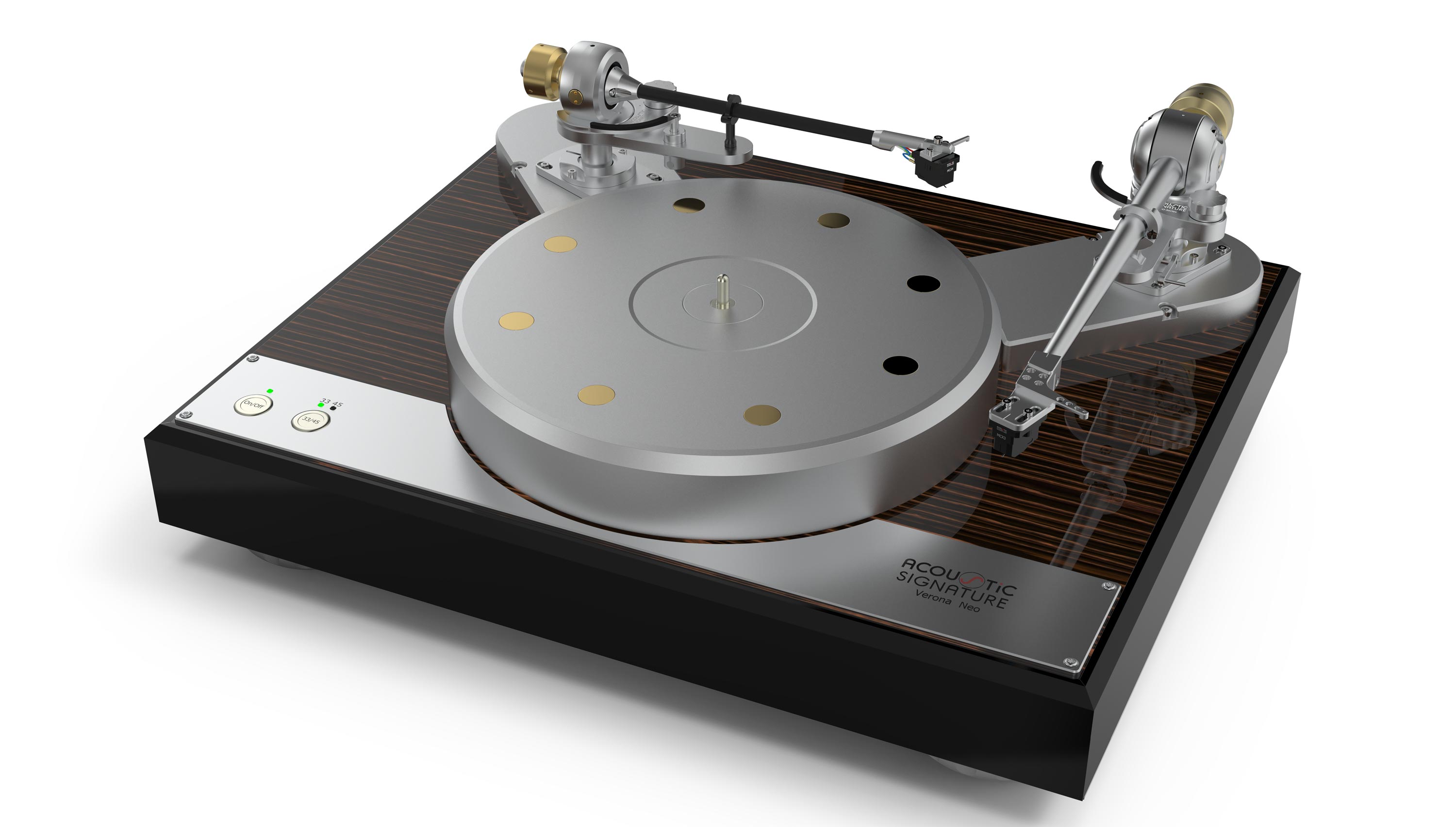

Acoustic Signature Verona NEO birds eye view
Acoustic Signature Verona NEO frontview
Sideview of the Verona NEO in Makassar

Modern drive with 2 motors

Modern drive with 2 motors

The Verona NEO has 2 inte­grated, comple­tely insu­lated AC-motors and a RPM-regulated double belt drive with speed fine adjustment for the subplatter.

2 tonearms

2 tonearms

Prepared for up to two 9 to 12 inch tonearms.

the tonearms…

AVC Level 3

AVC Level 3

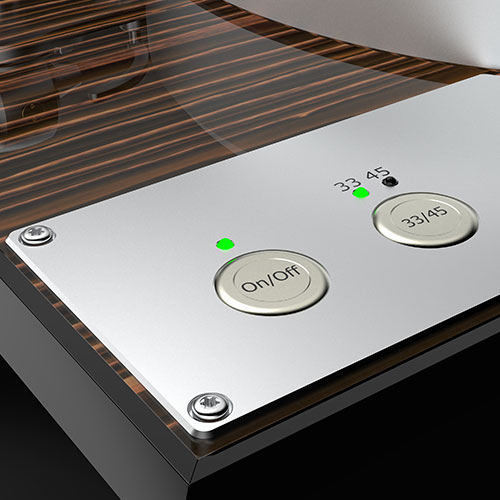

The control panel is harmo­niously inte­grated into the chassis. The Verona NEO is equipped with the exter­nal digital motor control­ler DMC-20 with a super stable multi-vol­tage power supply, featuring the inno­vative AVC-system at it’s highest level 3.

AVC technology…

Elaborate chassis design

Elaborate chassis design

The multi-sand­wich chassis of the Verona NEO offers greater rigi­dity and excel­lent acoustic proper­ties. The 3-point suspen­sion with the gel-damped feet specially deve­loped by Acoustic Signa­ture ensures optimum decoupling during record playback.

Technical data

AC-motors:2
Drive system:RPM-regulated double belt drive with speed fine adjustment for the subplatter
AVC:Level 3
Speed range:33 1/3 RPM and
45 RPM
Power adapter:External digital motor controller DMC-20 with super stable power supply
(100 V – 260 V AC, 50 / 60Hz.)
(WxDxH: 24 x 22 x 6cm; 2.6 kg)
Control panel:Integrated
Bearing:High-precision Dura Turn Diamond® bearing
Tone arm base:Up to 2 mounting boards for 9 to 12-inch tone arms
Tone arm compati­bility:9 to 12 inch
Maximum number of tone arms:2
Platter:Alumi­num anodized
(Ø 310 x 50 mm / 11 kg),
with Silen­cer modules
Silencer:8
Chassis:Massive 65 mm sandwich chassis made of MDF, steel & plywood
Feet:3 height-adjustable gel-damped aluminum feet
Dimen­sions (WxDxH):544 x 449 x 166 mm
Weight:33 kg

Available finishes

Platter:Aluminum (anodized)
Chassis:Piano black or
piano black with glossy Makassar top surface
Silencer:Polished brass,
optional: 24 carat gold-plated or polished chrome

Package contents

Verona NEO with 8 Silencers in Makassar finish

Silencer and CLD technology

The Verona NEO features 8 silencer modules and an optimized chassis cons­truc­tion with our pionee­ring CLD techno­logy to reduce platter and cabinet vibrations. The chassis is avai­lable either in fully piano black finish or in piano black with a glossy Makassar top surface.
