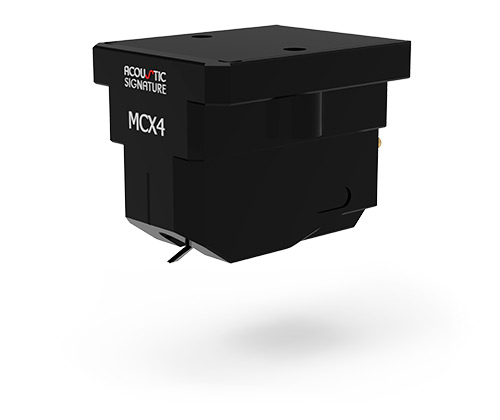

Acoustic Signature MCX4

MCX4

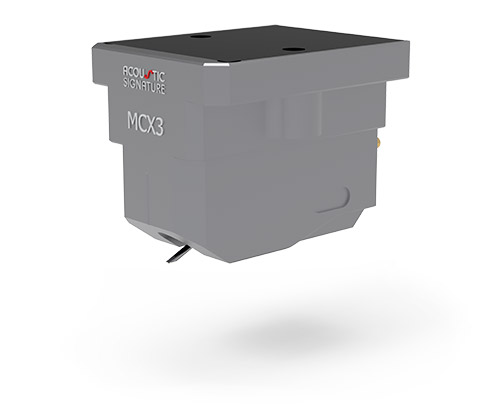

Acoustic Signature MCX3

MCX3

Acoustic Signature MCX2

MCX2

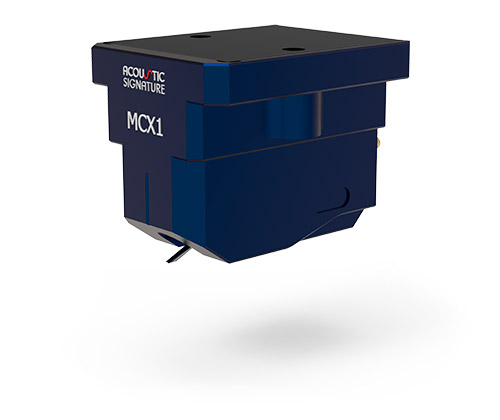

Acoustic Signature MCX1

MCX1

Acoustic Signature MM3

MM3

Acoustic Signature MM2

MM2

Acoustic Signature MM1

MM1

comparison chart…

Acoustic Signature cartridges

Since 2015 the Acoustic Signa­ture product port­fo­lio is also com­ple­ted by two cart­ridge series. Whether you prefer a ‘moving mag­net’ or a ‘moving coil – cart­rid­ges from Acoustic Signa­ture always offer out­stan­ding value for money!

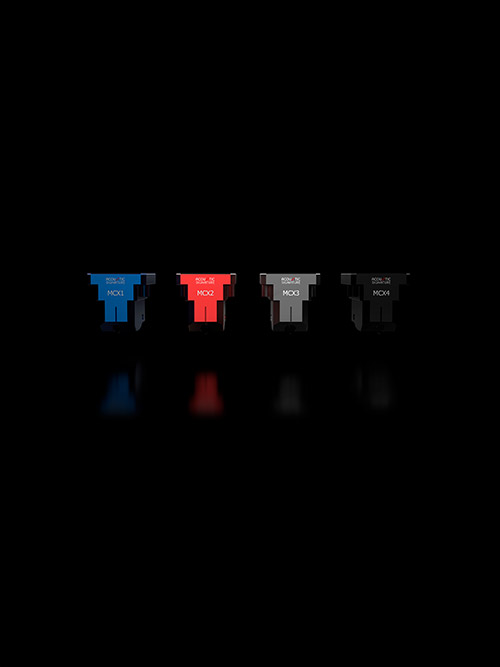

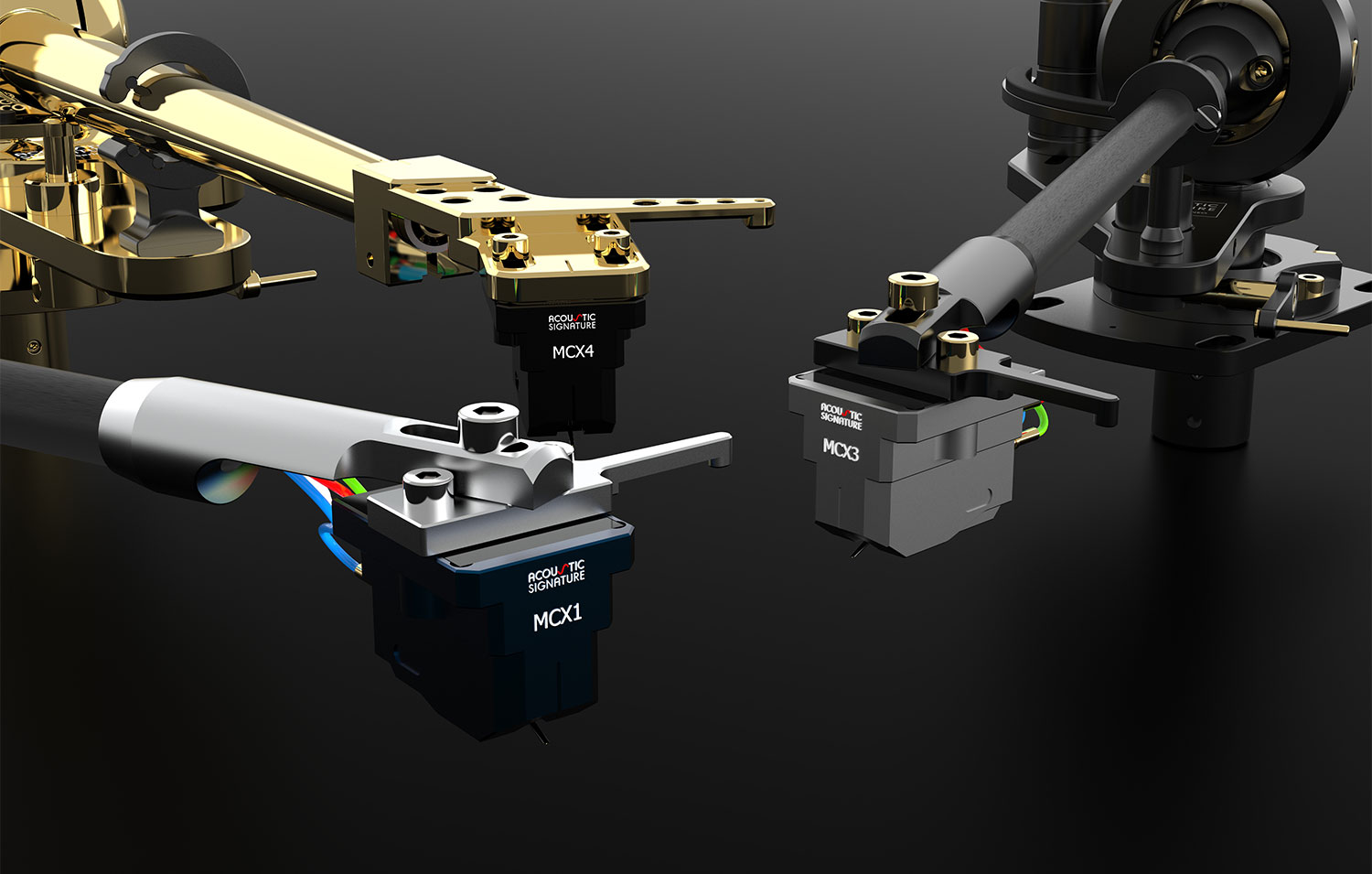

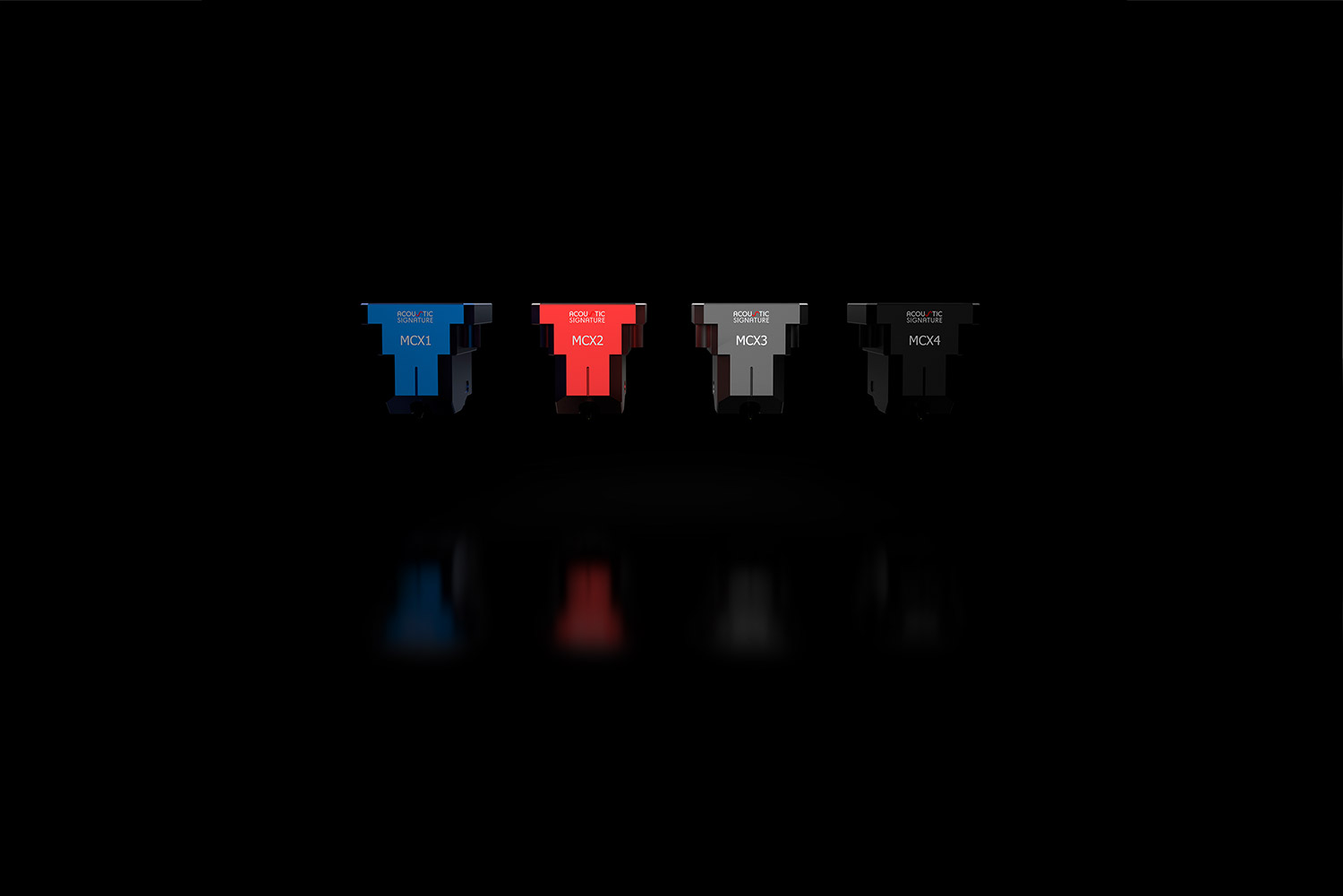

MCX cartridge series by Acoustic Signature

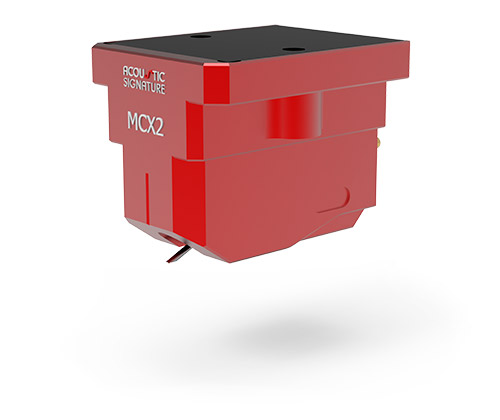

Acoustic Signature MCX2 cartridge
Acoustic Signature MM1 cartridge

You have the choice between seven dif­fe­rent models – sui­table for every audio­phile demand and phono pre­amp­lifier: three moving mag­net cart­rid­ges from our MM series and four moving coil cart­ridges from our MCX series.

Cartridge comparison

Please scroll the table to the right/left.

Feature

MCX1

MCX2

MCX3

MCX4

MM1

MM2

MM3

System:MCMCMCMCMMMMMM
Stylus:Ellip­ticalNude
ellip­tical		Nude
fine line		Nude
Shibata		Ellip­ticalNude
ellip­tical		Nude
Shibata
Coil material:Copper4N silver4N copperGoldplated OFC copperCopperCopperSilver plated copper
Chassis:AluminumAluminumAluminumAluminum
Sound:Open, dynamic, warmOpen, dynamic, high resolution, rich of detailsFull, wirde, very high resolution, notably high frequenciesExtremely detailed, ulti­mate high frequency reproductionOpen, dynamic, warmOpen, rich of detailsVery detailed, excellent high frequency reproduction
Voltage output
(at 1 kHz, 5 cm/sec.):		0.55 mV0.55 mV0.35 mV0.3 mV5.5 mV5.5 mV5 mV
Frequency range
(at -3 dB):		20-25,000 Hz20-25,000 Hz20-25,000 Hz20-25,000 Hz20-20,000 Hz20-25,000 Hz20-31,000 Hz
Channel balance
(at 1 kHz):		< 1.5 dB< 1.5 dB< 1.2 dB< 1.0 dB
Channel separation
(at 1 kHz):		> 21 dB> 21 dB> 24 dB> 26 dB
Frequency response
(20-20,000 Hz):		± 2,5 dB± 2,5 dB± 1,5 dB± 1,5 dB
Acoustic Signature MCX cartridges
