TA-9000 NEO

Acoustic Signature

One of the most elabo­rate arm­tube designs in the history of high-end compo­nents, ball bea­rings used in astro­nau­tics which can hardly be surpas­sed in terms of pre­cision and low friction, an inno­vative ma­terial sym­biosis that has been thought out down to the smal­lest detail and that unites extreme rigidity and light­ness as well as the ability to absorb vibra­tions: the TA‑9000 NEO is made for the ulti­mate turntables.

TA-9000 NEO in silver

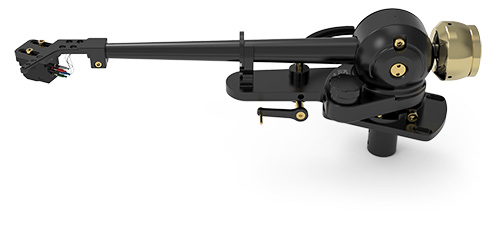

TA-9000 NEO in black

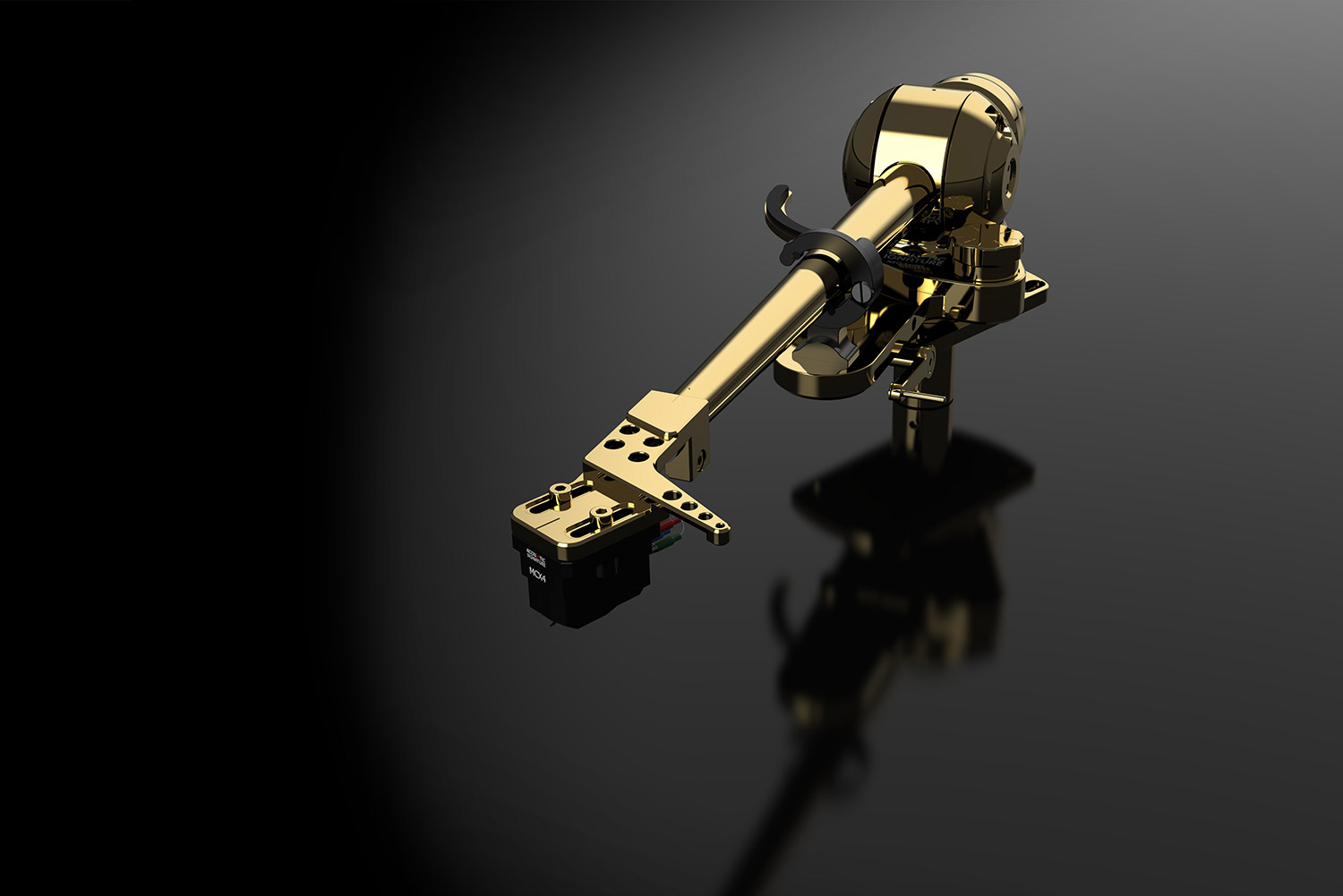

TA-9000 NEO in gold

TA-9000 NEO in silverblackgold

Special Features:

  • Tonearm with exten­sively dam­ped multi-structure alumi­num armtube
  • Availa­ble as 9″ and 12″ version
  • Perfect tracking results due to friction­less, pre-tensio­ned high-pre­cision ball bea­rings by Timken
  • Better rigidity and smooth ope­ration due to NEO stain­less steel tone­arm axis design
  • Internal high-purity silver wiring (4N)
  • Supplied with external Audio­quest 5-pin phono cable (1.5 m, RCA or XLR)
  • Counter­weight made of brass
  • Optional head­shell made of massive titanium
  • Adjus­table VTA & azimuth
  • SME-type moun­ting versions
  • Anti-skating knob
  • 5-year warranty (with registration)

5 year warranty

Handmade in Germany

Made for ultimate turntables

Made for ultimate turntables

Our refe­rence tone­arm is the perfect match for the best turn­tables in the world – like the Acoustic Signa­ture Invictus NEO.

the Invictus NEO…

High-end ball bea­ring

High-end ball bea­ring

The out­standing pre-tensio­ned ball bea­rings of the TA‑9000 NEO are also used in astro­nau­tics. They can hardly be surpas­sed in terms of pre­cision and low friction and guarantee perfect tracking results.

Perfect wiring

Perfect wiring

The internal wiring of the TA‑9000 NEO is made of high-purity silver (4N). The external 5-pin phono cable by Audio­­quest is available either with RCA or XLR connectors. A massive titanium head­shell is among the upgrade options.

Precision in gold

Precision in gold

The TA-9000 NEO is available in silver anodized as well as in black anodized. The black version may be upgraded with a 24K gold-plated counterweight. Of course there is also a completely 24K gold-plated edition.

Technical data

Charac­teris­ticFeature
Available sizes:9″ version,
12″ version
Length:298 mm (9″ version),
368 mm (12″ version)
Effective length:239.3 mm (9″ version),
309 mm (12″ version)
Mounting distance
(from pivot to center of platter):
222 mm (9″ version),
295.8 mm (12″ version)
Total weight:678 g (9″ version),
746 g (12″ version)
Effective mass:14.7 g (9″ version),
16.1 g (12″ version)
Tilt angle
(depends on cartridge):
23.9° (9″ version),
18.1° (12″ version)
Overhang:17.3 mm (9″ version),
13.2 mm (12″ version)
Cartridge balance range:4 to 16 g
Tonearm mounting versions:SME style
Armtube:Extensively damped multi-structure aluminum armtube
Signal cable material:High-purity silver wiring (4N)
Phono cable:1.5 m phono cable
by Audio­quest
Connectors:5-pin to RCA or XLR/ground connector

Available finishes

Compo­­nentsFinish
Tonearm:Black (anodized, optional: counter weight 24K gold-plated),
Silver (anodized),
24K gold-plated;
Optional: massive titanium headshell upgrade
Armtube:Aluminum in selected tonearm color

Package contents

  • TA-9000 NEO tonearm
  • Counter weight
  • Adjustment template
  • Phono­ cable
  • Additional weight
  • Base mount
  • Screws
  • Toolset
  • Instruction manual

Warranty

5 year warranty

View inside the TA-9000 armtube

A Masterpiece

The precision behind the outer shell: A view into the armtube shows one of the most elabo­rate designs in the history of high-end compo­nents. The TA-9000 NEO has an exten­sively dam­ped multi-structure alumi­num armtube.
