Montana NEO

Acoustic Signature

In the planning phase of the Montana NEO, we have decided to put all our knowledge and innovative technologies into an absolutely world class high mass turntable with compact dimensions. After intensive development work, we can now present an extremely attractive and flexible performer that has exceeded our own expectations and is absolutely unrivalled in its price range!

Special features:

  • 3 integrated, completely insulated AC-motors
  • External digital motor controller DMC-20 with super stable multi-voltage power supply and innovative AVC technology level 3 (Auto­matic Vibration Control)
  • Ultraprecise, extremely rigid and robust DTD® bearing with diamond-coated spindle (Dura Turn Diamond® Bearing)
  • Exclusive Silencer technology for effective reduction of platter vibration with 24 Silencer modules
  • Massive aluminum chassis with CLD technology (Constraint Layer Damping) for significantly improved resonance behavior
  • RPM-regulated double belt drive with speed fine adjustment for the subplatter
  • Integrated control panel
  • 3-point setup with special gel-damped feet
  • Prepared for up to 2 tonearms
  • Up to 2 adjustable arm­ boards for 9 to 12  inch tonearms
  • 15-year warranty (with registration)

15 year warranty

Handmade in Germany

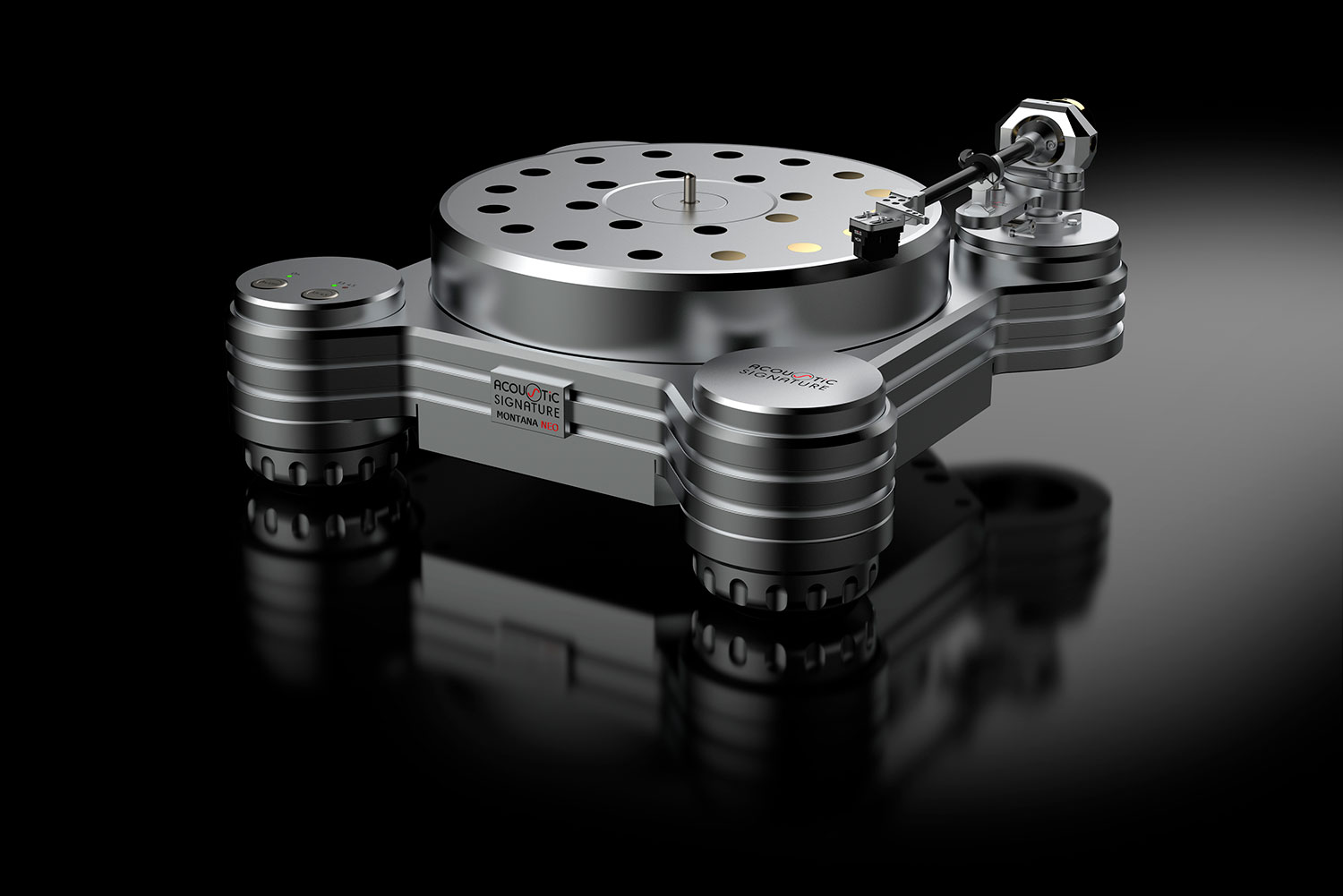

Montana NEO in silver

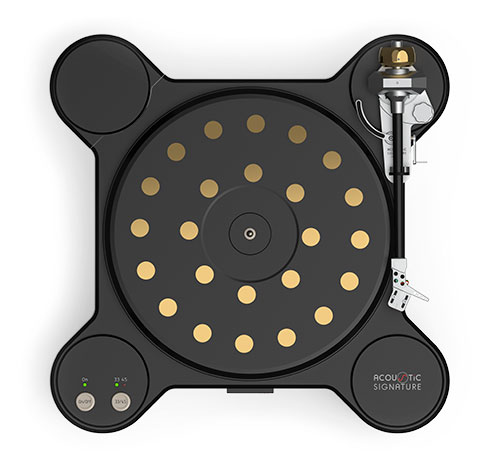

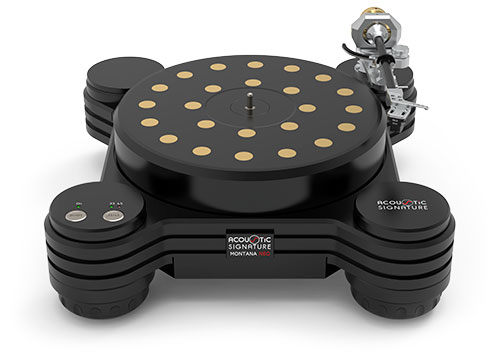

Montana NEO in black

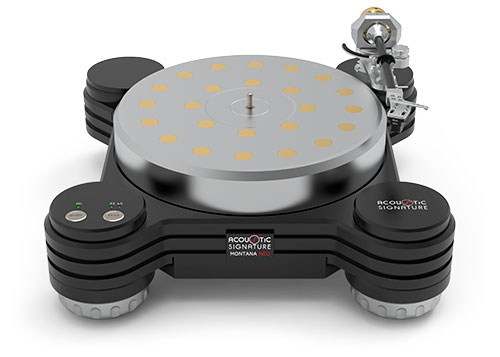

Montana NEO in bi-color

Montana NEO in silverblackbi-color

Montana NEO in silver

Montana NEO in black

Montana NEO in bi-color

Acoustic Signature AVC - Automatic Vibration Control

Acoustic Signature CLD - Constraint Layer Damping

Acoustic Signature DTD - Dura Turn Diamond Bearing

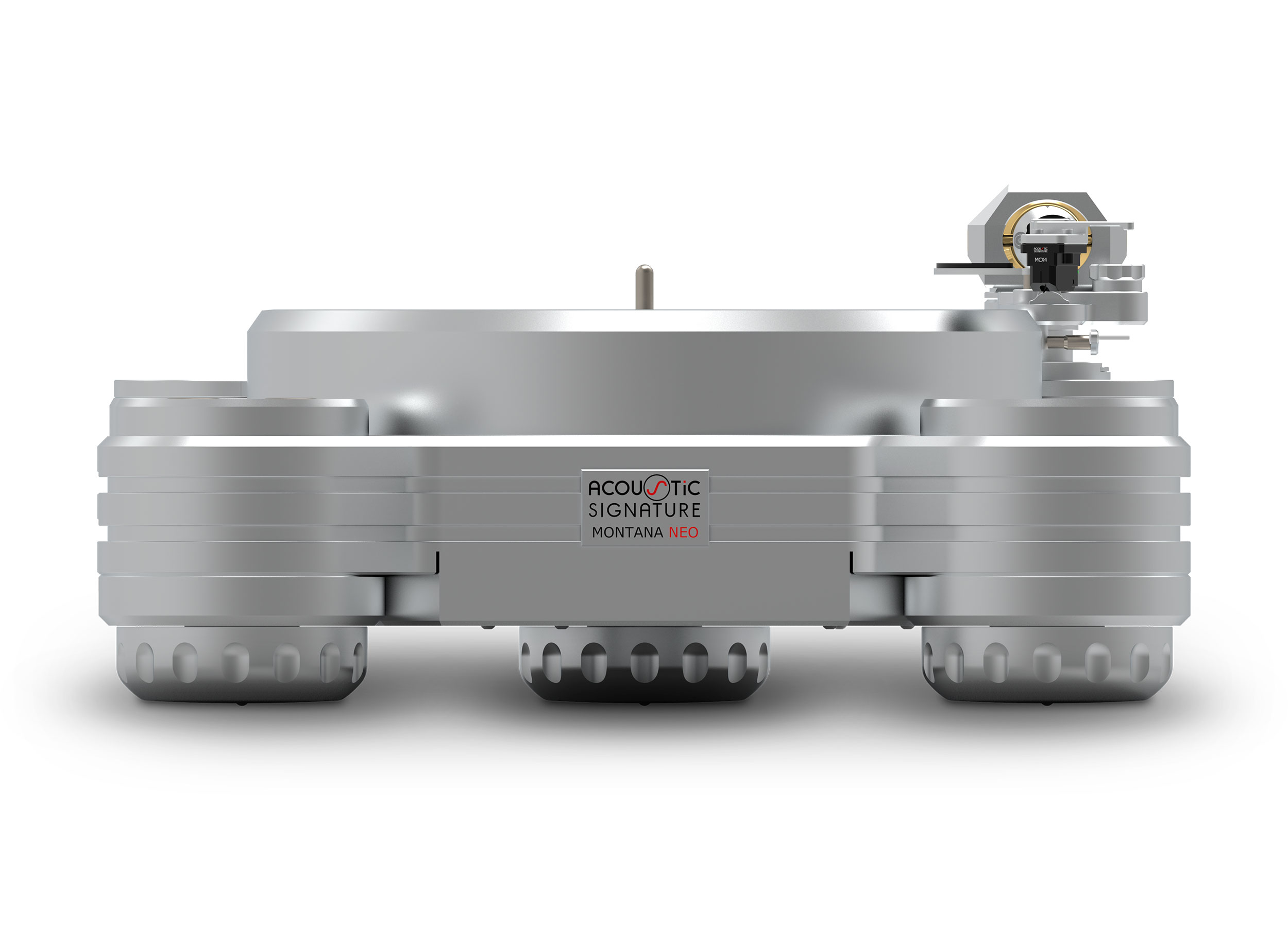

Acoustic Signature Montana NEO, silver, front view

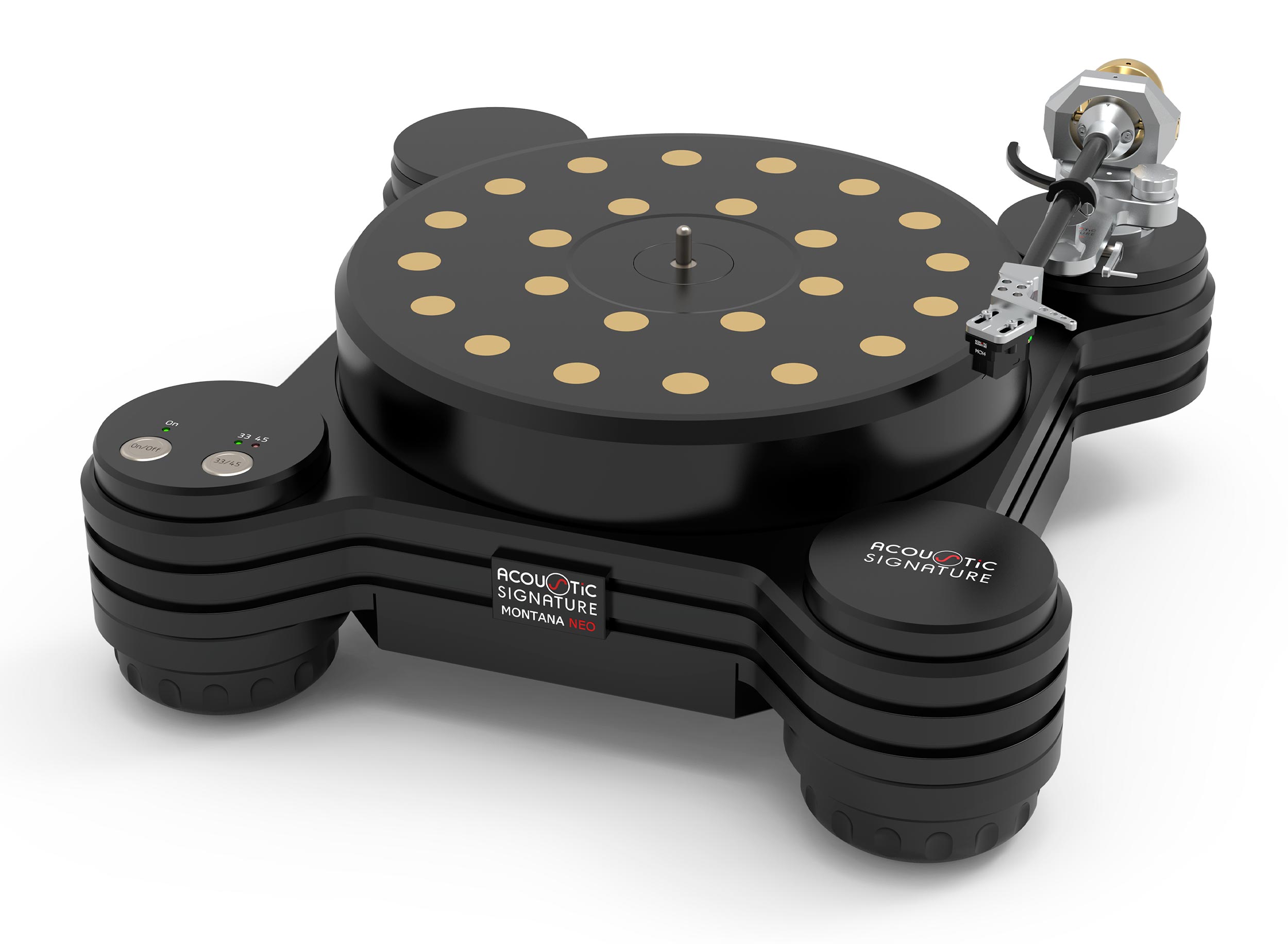

Acoustic Signature Montana NEO, black, seen from the side/top

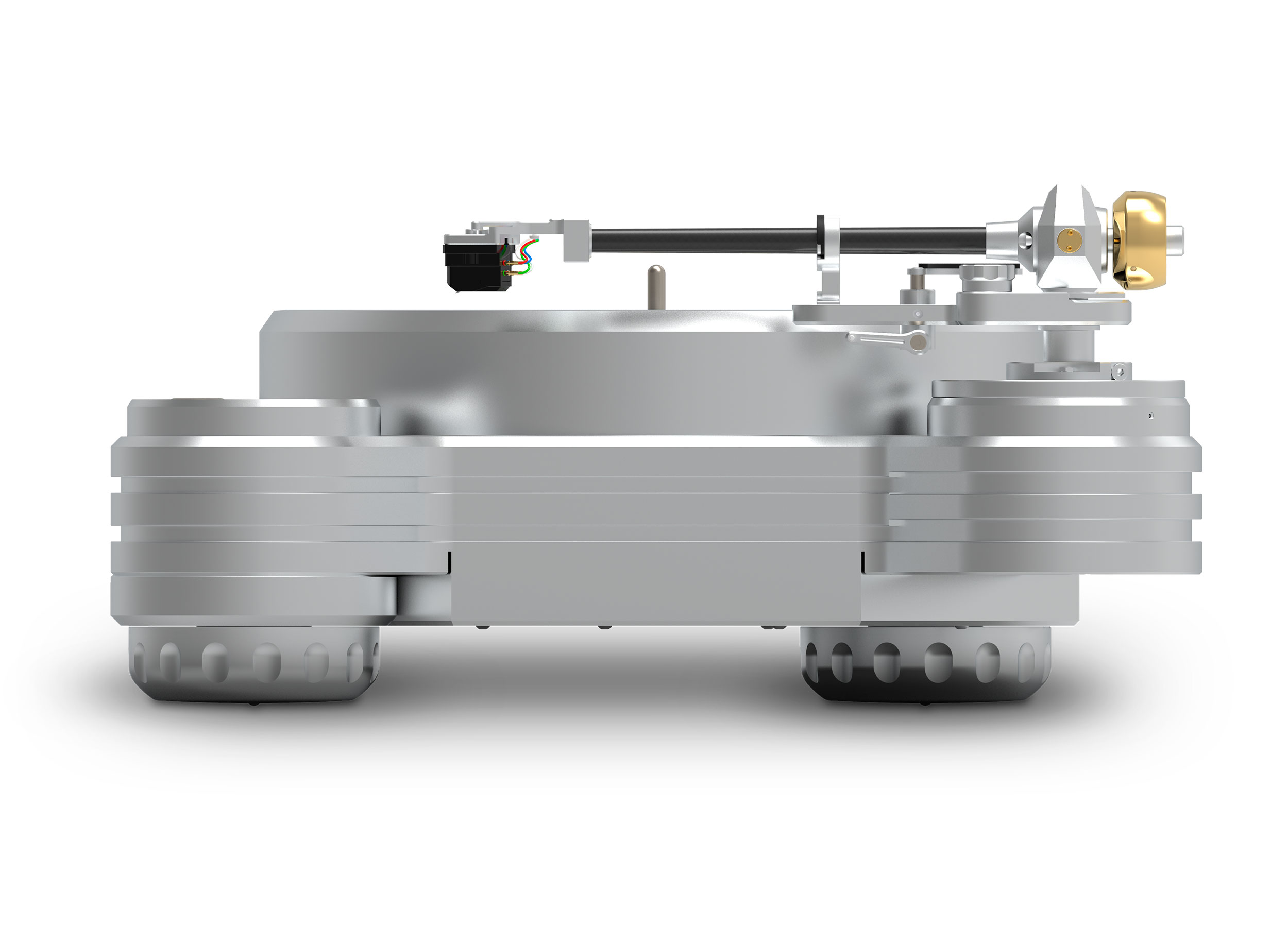

Acoustic Signature Montana NEO in silver, sideview

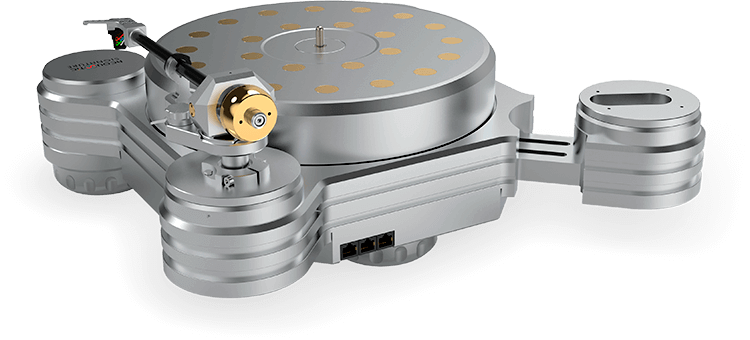

Montana NEO armbase

The 2 arm­bases of the
Montana NEO

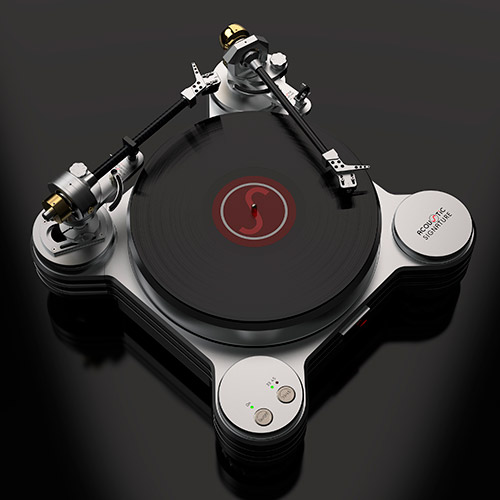

The Mon­tana NEO pro­vides two adjus­table arm­bases. 9 as well as 12 inch ton­arms may be moun­ted. The tun­table offers a great confi­guration flexibility due to exchange­able armboards.

In the basic configuration of the Montana NEO, one arm­board is invi­dually desig­ned to fit the custo­mers tonearm. The second is con­struc­ted as an empty arm­board with a closed top. The arm­board is exchange­able with ease to mount a second tonearm.

3 motors & AVC level 3

3 motors & AVC level 3

Three integrated, completely insulated AC-motors are powering the Montana NEO’s subplatter drive via double belts. The turntable reaches the highest level 3 of our inno­­va­tive AVC tech­nology (Auto­­matic Vibra­­tion Control).

more on AVC…

Design

Design

The elaborate design of this abso­lutely world class high mass turntable convinces with still quite com­pact dimen­sions. The remar­kable Montana NEO fea­tures all of our inno­vative technologies…

the technologies…

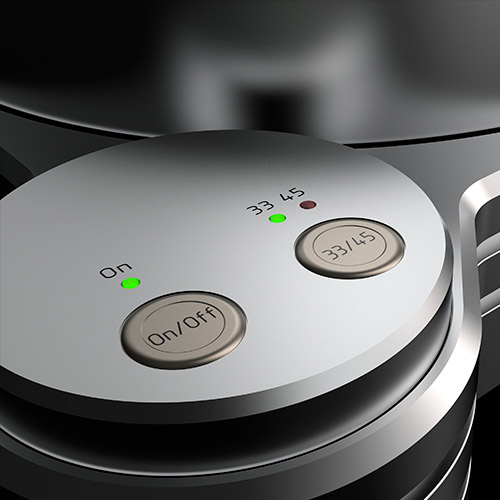

Control panel

Control panel

The inter­nal control panel of the Montana NEO is of clear shape. It is inte­grated in a space-saving manner into the left front foot of the turntable.

Constraint Layer Damping

Constraint Layer Damping

The ground­breaking CLD techno­logy is of utmost impor­tance to Acoustic Signa­ture. The Cons­traint Layer Damping achieves an out­stan­ding reduc­tion of platter vibra­tions on the Montana NEO.

more on CLD…

Technical data

Charac­teris­ticFeature
AC-motors:3
Drive system:RPM-regulated double belt drive with speed fine adjustment for the subplatter
AVC:Level 3
Speed range:33 1/3 RPM and
45 RPM
Power adapter:External digital motor controller DMC-20 with super stable power supply
(100 V – 260 V AC, 50 Hz.)
Optional: 24 V DC Input via XLR 5-pole connector
Control panel:Integrated
Bearing:High-precision Dura Turn Diamond® bearing
Tone arm base:Up to 2 adjustable armboards
1 designed to fit to customers tonearm
1 empty armbase (with a closed top)
Tone arm compati­bility:9  to 12  inch
Maximum number of tone arms:2
Platter:Aluminum anodized
 310 x 50 mm / 13 kg),
with Silen­cer modules
Silencer:24
Chassis:65 mm aluminum alloy
Feet:3 height-adjustable gel-damped aluminum feet
Dimen­sions (WxDxH):430 x 430 x 170 mm
Weight:37 kg

Available finishes

Compo­­nentsFinish
Chassis and platter:Black (anodized),
silver (anodized) or
bi-color
Silencer:Polished brass,
optional: 24 carat gold-plated or polished chrome

Package contents

  • Montana NEO chassis with integrated arm­boards
  • Platter
  • Subplatter
  • External power supply DMC-20
  • External control panel
  • Patch cable RJ45 blue
  • Patch cable RJ45 red
  • 3 drive belts
  • Tool set
  • Leather mat
  • Gloves
  • Instruction manual

Warranty

15 year warranty

Silencer modules of the Montana NEO

Silencer

The Montana Neo’s platter is equip­ped with 24 Silencer modules. The number, arrange­ment and layout was deve­loped and opti­mized with the use of „state of the art“ CAD techno­­logies. The brass modules are an attractive feature – but first of all they lead to an excel­lent dam­ping and reso­nance absorp­tion.



read more…
