Invictus NEO

Acoustic Signature

We could now write an essay on our Invictus NEO. But this would make no sense. You wouldn’t believe us any­way until you have heard our master­piece your­self. So let’s make this short: No matter where you look – the Acoustic Signa­ture Invictus NEO is the best turn­table in the world. Spot.

Special features:

  • 6 integrated, completely insulated AC-motors
  • External digital motor controller DMC-20 with super stable multi-voltage power supply and innovative AVC technology level 3 (Auto­matic Vibration Control)
  • Ultraprecise, extremely rigid and robust DTD® bearing with diamond-coated spindle (Dura Turn Diamond® Bearing)
  • Oversized, massive anodized aluminum 335 mm sandwich platter with brass layer (total weight of 16.5 kg)
  • Exclusive Silencer technology for effective reduction of platter vibration with 56 Silencer modules
  • Massive aluminum chassis with CLD technology (Constraint Layer Damping) for significantly improved resonance behavior
  • RPM-regulated double belt drive with speed fine adjustment for the subplatter
  • Special internal control panel
  • Upgrade option with a speed range to 78 RPM
  • 3-point setup with height-adjustable, special 3D-double-damped feet
  • Prepared for up to four 9 to 12 inch tonearms
  • Adjustable armbase with exchangeable arm­boards for numerous tonearms
  • Optional finish upgrade in black-gold with 24K gold-plated components
  • 15-year warranty (with registration)

15 year warranty

Handmade in Germany

Acoustic Signature AVC - Automatic Vibration Control

Acoustic Signature CLD - Constraint Layer Damping

Acoustic Signature DTD - Dura Turn Diamond Bearing

Invictus NEO in silver

Invictus NEO in black-gold

Invictus NEO in silverblack-gold

Invictus NEO in silver

Invictus NEO in black-gold

Invictus NEO explosion graphic
Acoustic Signature Invictus NEO in silver, front view
Acoustic Signature Invictus NEO, black-gold, side-top angled view
Acoustic Signature Invictus NEO in silver, sideview

130 kilogram high-end

130 kilogram high-end

The oversized 335 mm alumi­num platter with a CLD sand­wich con­struc­tion has a special embed­ded brass layer and 56 Silencer modules. 24 are arran­ged on the inner and 32 on the outer side. The platter itself has a weight of 16.5 kilogram.

CLD technology…

Highly motorized

Highly motorized

Six AC-motors, hidden inside the chassis, are powe­ring the sub­platter driven turn­table. The Invictus NEO has the maxi­mum perfor­mance level of the Acoustic Signa­ture Auto­ma­tic Vibra­tion Control technology.

more on AVC…

Gold

Gold

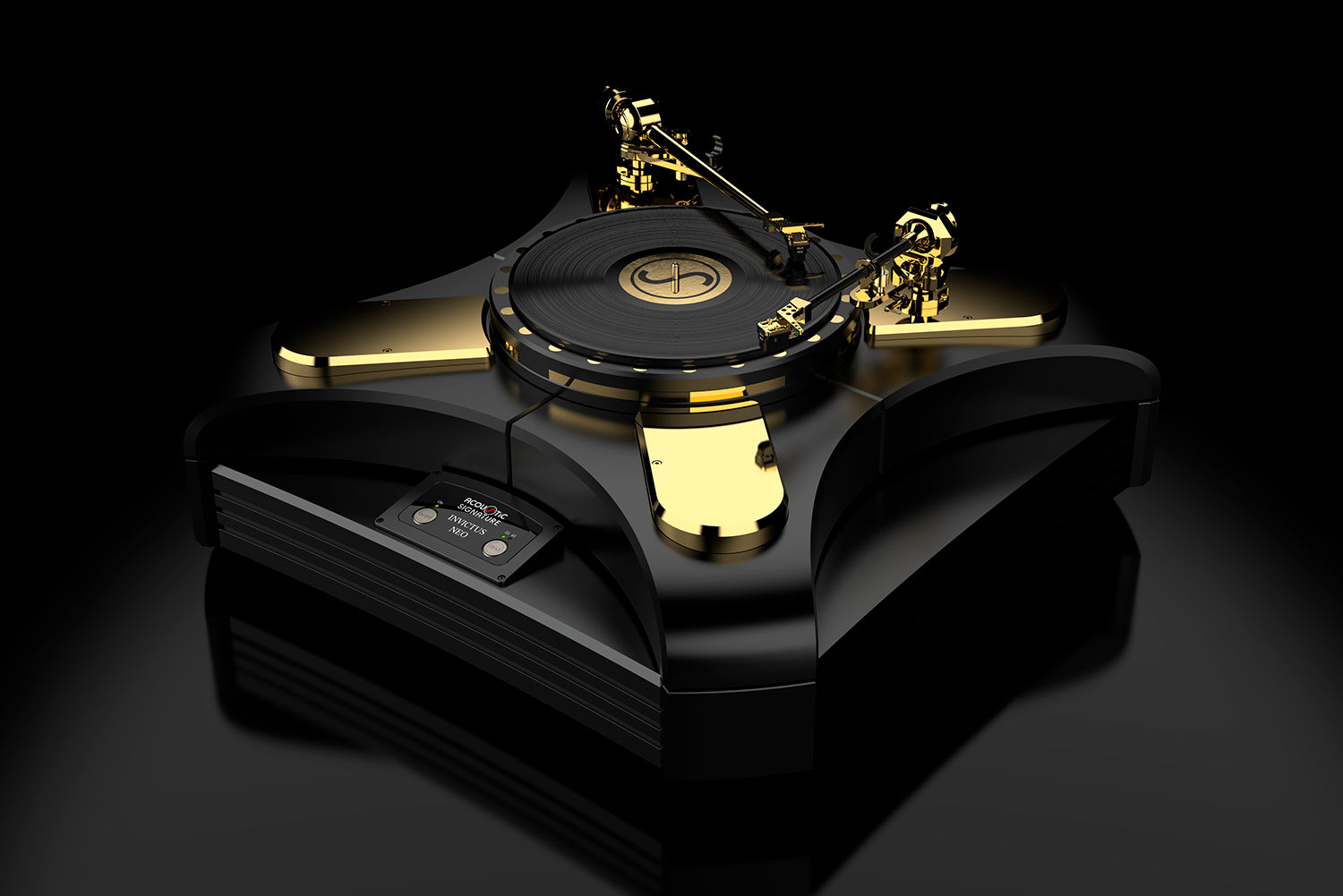

The black-golden finish edition of the Invictus NEO fea­tures nume­rous 24 carat gold-plated compo­nents. The Silencer modules are as well avai­lable in a matching gold-plated upgraded version.

Invictus Rack

Invictus Rack

The matching Invictus Rack offers a perfect and secure stand for our heavy weight champion. The rack ist available in the same finishes and is made of the same highest quality materials.

Invictus NEO with 4 tonearms

Playback vartiety

Up to four 9 to 12 inch tone­arms may be moun­ted on the Invictus NEO, provi­ding highest flexi­bilty for music repro­duction. Adjus­table arm­bases with exchange­able arm­­boards for nume­rous tone­arms are indivi­dually made to suit your configuration.



read more…

Technical data

Charac­teris­ticFeature
AC-motors:6 (completely insulated)
Drive system:RPM-regulated double belt drive with speed fine adjustment for the subplatter
AVC:Level 3
Speed range:33 1/3 RPM,
45 RPM,
78 RPM upgrade option
Power adapter:External digital motor controller DMC-20 with super stable power supply
(100 V – 260 V AC, 50 Hz.)
Optional: 24 V DC Input via XLR 5-pole connector
Control panel:Integrated
Bearing:High-precision Dura Turn Diamond® bearing
Tone arm base:Adjustable arm­base,
exchangeable custom made armboards for various tonearms
Tone arm compati­bility:9 to 12 inch
Maximum number of tone arms:4
Platter:50 mm anodized aluminum sandwich platter base
with brass layer and Silen­cer modules
(Ø 335 x 50 mm / 16.5 kg)
Silencer:56
Chassis:Massive aluminum alloy
Feet:3-point setup with 3D-printed magnetic double-damping feet
Dimen­sions (WxDxH):710 x 710 x 270 mm
Weight:ca. 130 kg

Available finishes

Compo­­nentsFinish
Chassis and platter:silver (anodized),
black (anodized) with 24K gold plated components,
plain black (anodized) version upon request
Silencer:Polished brass,
optional: 24 carat gold-plated or polished chrome

Package contents

  • Invictus NEO chassis
  • Platter
  • Subplatter
  • Arm­base
  • Baseplate
  • External power supply DMC-20
  • Power cord
  • Patch cables
  • 4 drive belts
  • Tool set
  • Leather mat
  • Gloves
  • Instruction manual

Warranty

15 year warranty

Downloads

Invictus NEO playing a record at the highest audiophile level

Masterworks

1 DTD® bearing, 3 magnetic double-damping feet, up to 4 tone­arms, 6 motors, optional 24K gold-plated compo­nents, 56 Silencer modules, upgrade option with 78 RPM, 130 kilo­gram of finest materials, hand-assembled of almost 500 parts: our refe­rence Invictus NEO in numbers! Of course equip­ped with the highest levels of our ground-breaking Acoustic Signature technologies.
