Typhoon NEO
The Typhoon NEO knows almost no compromises! Prepared for 3 tonearms and equipped with the second-highest expansion stages of our newest drive system and chassis technologies, this high mass turntable will produce high audiophile waves – in the most positive sense. It is absolutely clear to us: The overall performance of the Acoustic Signature Typhoon NEO is at a level that will beat some of the world’s best and much more expensive turntables.

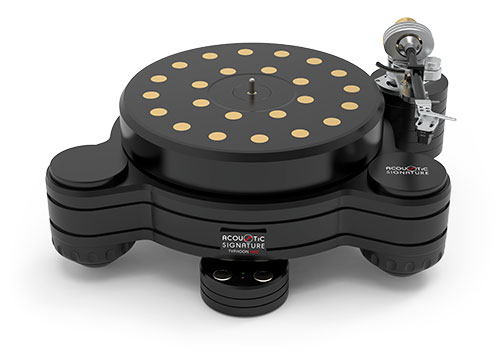

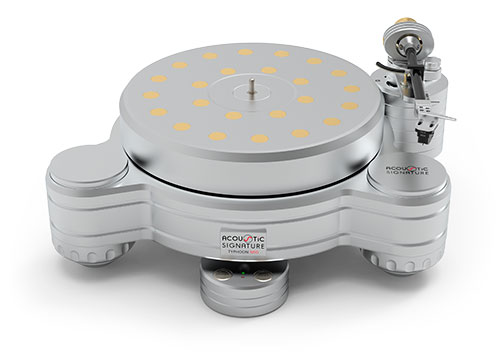

Typhoon NEO in silverblackbi-color
Special features:
- 3 integrated, completely insulated AC-motors
- External digital motor controller DMC-20 with super stable multi-voltage power supply and innovative AVC technology level 2 (Automatic Vibration Control)
- Ultraprecise, extremely rigid and robust DTD® bearing with diamond-coated spindle (Dura Turn Diamond® Bearing)
- Exclusive silencer technology with 24 silencer modules for platter vibration reduction
- Massive aluminum chassis with CLD technology (Constraint Layer Damping) for significantly improved resonance behavior
- RPM-regulated double belt drive with speed fine adjustment for the subplatter
- 3-point setup with special gel-damped feet
- Prepared for up to 3 tonearms
- Up to 3 adjustable arm boards for 9 to 12 inch tonearms
- Flexible placeable control panel
- 15-year warranty (with registration)
Future design icon

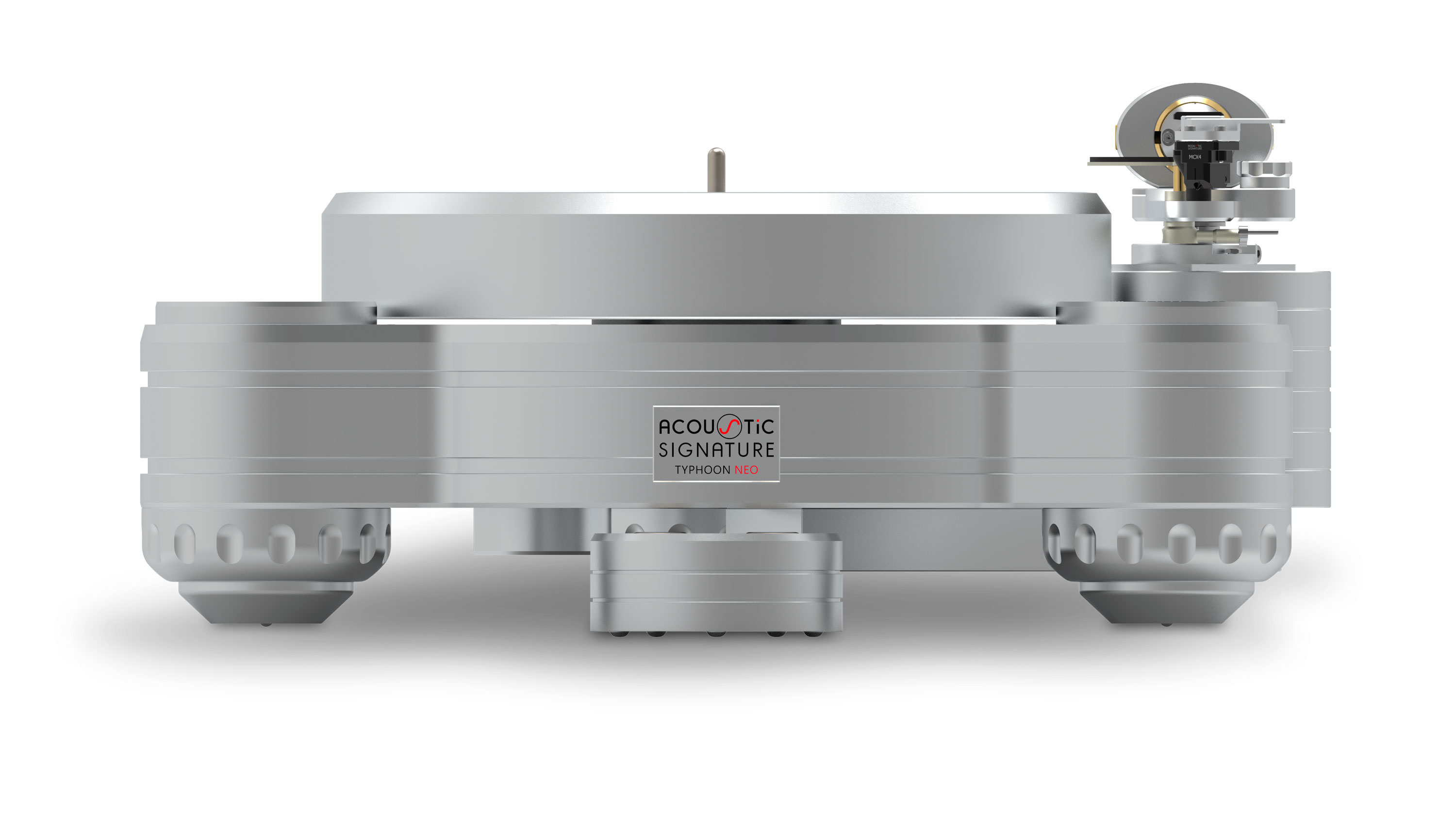

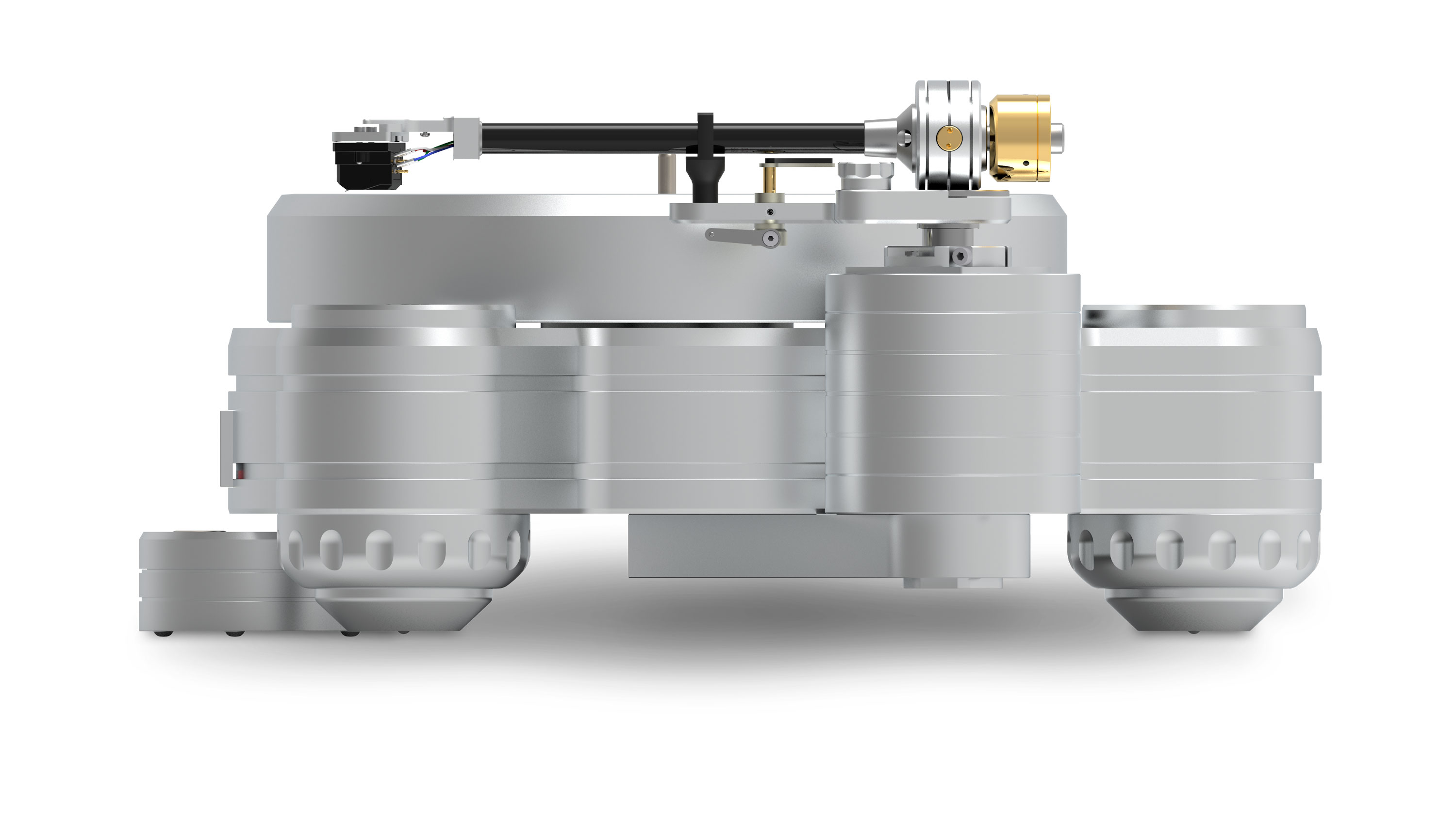

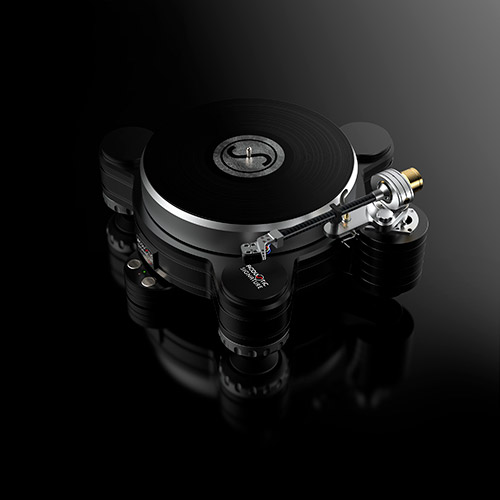

With its clear design language and space-saving dimensions, the Typhoon NEO represents the unmistakable design of Acoustic Signature. The 75 mm aluminum alloy chassis rests on a 3-point setup with specially designed, gel-damped and height-adjustable feet.
Smooth & dynamic

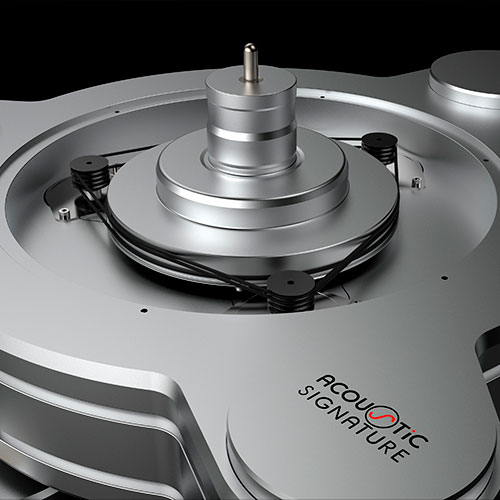

The second highest level of our automatic vibration control – AVC Level 2 – as well as three fully isolated AC motors and a double-belt sub-disc drive form the basis for the spectacular performance of the Typhoon NEO!
Outstanding sound flexibility

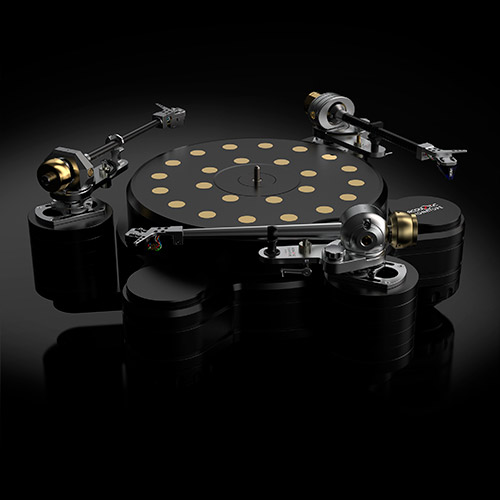

The Typhoon NEO is prepared for three tonearms with lengths from 9 to 12 inches – a highly flexible turntable for vinyl lovers with the highest audiophile demands!
Benchmark precision
The Dura Turn Diamond® Bearing: Our pioneering DTD® bearing also ‘beats’ at the heart of the Typhoon NEO.

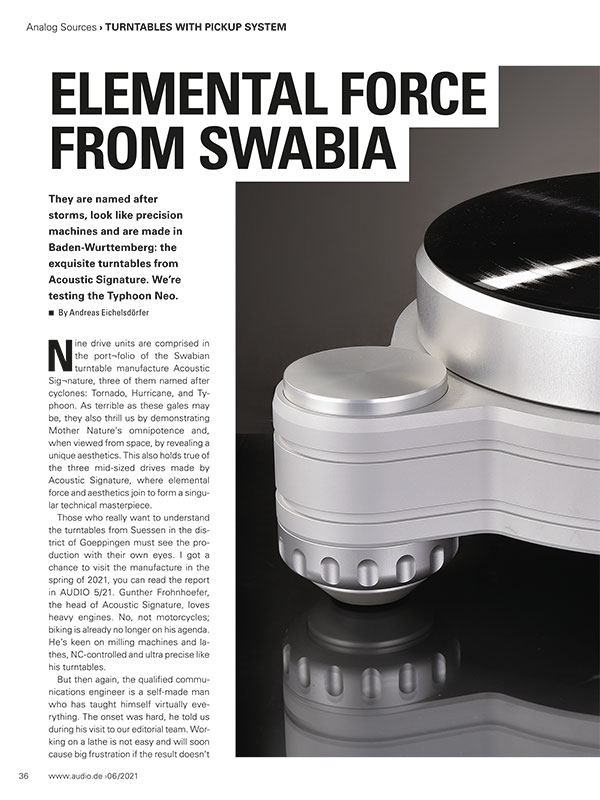

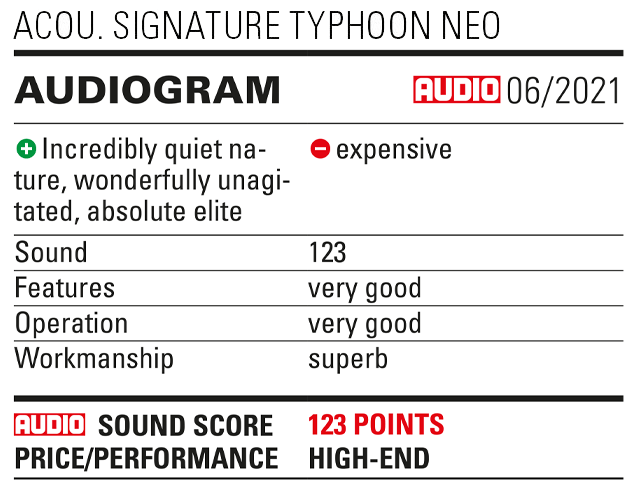

Test reports
“From the Typhoon Neo came the pure music. What sounds so trivial, is actually the very great art which only a few can master. The Typhoon Neo is a master of sound.”
“I heard a whole lot more of what I love about playing records when I played them on the Acoustic Signature Typhoon NEO/TA-5000 setup. Enough said.”
(Typhoon NEO with TA‑5000 NEO)
pta
09/2021
by Dave McNair

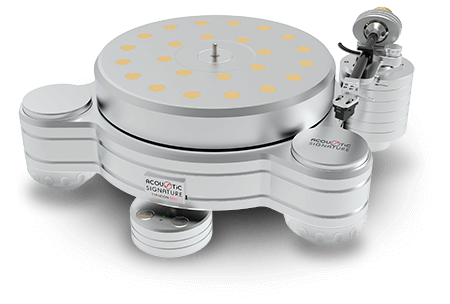

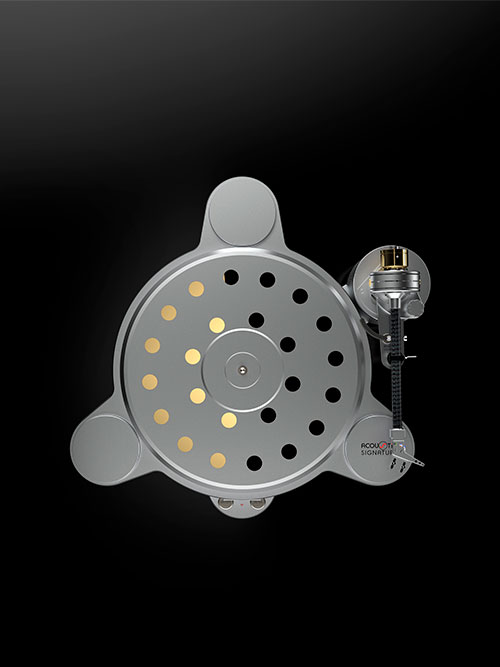

Silencer modules
The Silencers absorb unwanted vibrations, leading to a huge improvement in sound fidelity. The Typhoon NEO’s platter features 24 Silencer modules. The basic Silencer finish is polished brass with an optional upgrade to 24 carat gold-plated or polished chrome.
Stormy siblings

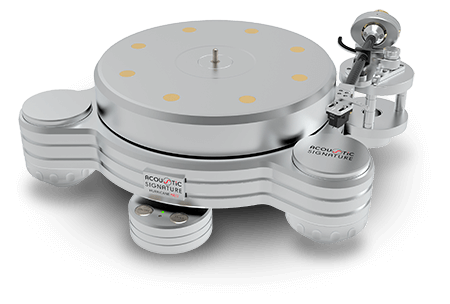

The basic design approach unites the Tornado NEO, Hurricane NEO and Typhoon NEO turntables. All three models are subplatter driven and have the new DTD® bearing in common.
But the further features and technology levels of the three high mass turntables differ aside these characteristics:
Feature |
|
|
|
|---|---|---|---|
| AC-motors: | 1 | 2 | 3 |
| AVC: | Level 1 | Level 1 | Level 2 |
| Power supply: | DMC-10 | DMC-10 | DMC-20 |
| Silencers: | 4 | 8 | 24 |
| Chassis: | 45 mm | 50 mm | 75 mm |
| Weight: | 26.5 kg | 30 kg | 35 kg |
Technical data
| AC-motors: | 3 |
| Drive system: | RPM-regulated double belt drive with speed fine adjustment for the subplatter |
| AVC: | Level 2 |
| Speed range: | 33 1/3 RPM and 45 RPM |
| Power adapter: | External digital motor controller DMC-20 with super stable power supply (100 V – 260 V AC, 50 Hz.) Optional: 24 V DC Input via XLR 5-pole connector (WxDxH: 24 x 22 x 6cm; 2.6 kg) |
| Control panel: | External with flexible placement |
| Bearing: | High-precision Dura Turn Diamond® bearing |
| Tone arm base: | Up to 3 adjustable armboards 1 x designed to fit to customers tonearm 2 more armbases mountable (sold separately) |
| Tone arm compatibility: | 9 to 12 inch |
| Maximum number of tone arms: | 3 |
| Platter: | Aluminum anodized (Ø 310 x 50 mm / 13 kg), with Silencer modules |
| Silencer: | 24 |
| Chassis: | 75 mm aluminum alloy |
| Feet: | 3 height-adjustable gel-damped aluminum feet |
| Dimensions (WxDxH): | 450 x 460 x 190 mm |
| Weight: | 35 kg |
Available finishes
| Chassis and platter: | Black (anodized), silver (anodized) or bi-color |
| Silencer: | Polished brass, optional: 24 carat gold-plated or polished chrome |
Package contents
- Typhoon NEO chassis
- Platter
- Subplatter
- Armbase
- External power supply DMC-20
- External control panel
- Power cord
- Patch cable RJ45 blue
- Patch cable RJ45 red
- 3 drive belts
- Armbase wrench
- Tool set
- Leather mat
- Gloves
- Instruction manual
Warranty
- 15 year warranty for registered products manufactured after October 2020.

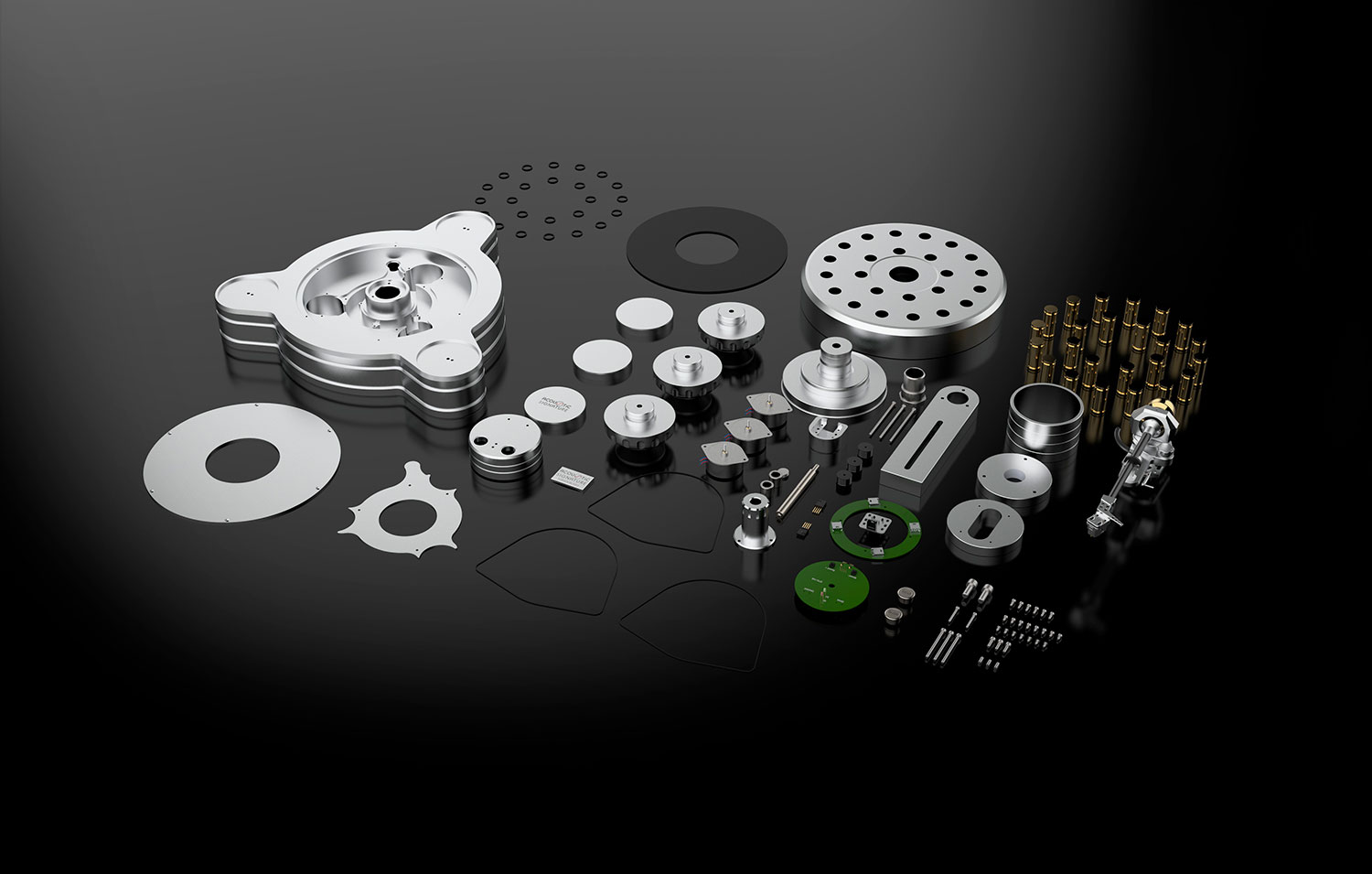

High quality parts
All selected components of the Typhoon NEO are manufactured with cutting-edge CNC technology at Acoustic Signatures factory in Germany. The turntable is manually assembled by our highly qualified staff. Top quality materials are of utmost importance.
