Invictus Jr. NEO

Acoustic Signature

The Invictus Junior NEO was born out of the inten­tion to offer the uncom­pro­mising con­cept of its ‘spiri­tual father’, our refe­rence turn­table Invictus NEO, in a more com­pact design. To get as close as possi­ble to the sonic ‘over’ capa­bi­lities of the Invictus NEO, we have put all our know­ledge of turn­table cons­truc­tion and the essence of music into the deve­lop­ment of the Invictus Junior NEO. The result: a high mass turn­table for those who don’t want to settle for less than the best!

Special features:

  • 4 integrated, completely insulated AC-motors
  • External digital motor controller DMC-20 with super stable multi-voltage power supply and innovative AVC technology level 3 (Auto­matic Vibration Control)
  • Ultraprecise, extremely rigid and robust DTD® bearing with diamond-coated spindle (Dura Turn Diamond® Bearing)
  • Oversized, massive anodized aluminum 335 mm sandwich platter with brass layer (total weight of 16.5 kg)
  • Exclusive silencer technology with 56 silencer modules (24 internal, 32 external) for platter vibration reduction
  • Massive aluminum chassis with CLD technology (Constraint Layer Damping) for significantly improved resonance behavior
  • RPM-regulated double belt drive with speed fine adjustment for the subplatter
  • External control panel for flexible placement
  • 3-point setup with height-adjustable and special gel-damped feet
  • Prepared for up to four 9 to 12 inch tonearms
  • Adjustable armbase with exchangeable arm­boards for nuemrous tonearms
  • Optional finish upgrade in black-gold with 24K gold-plated components
  • 15-year warranty (with registration)

Invictus Jr. NEO in silver

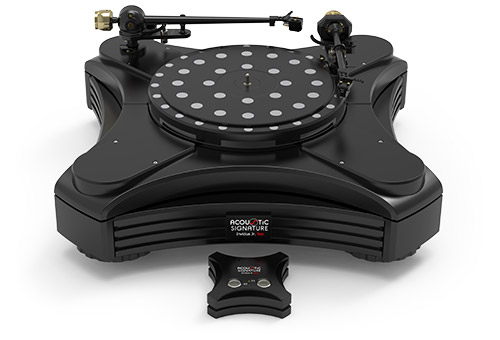

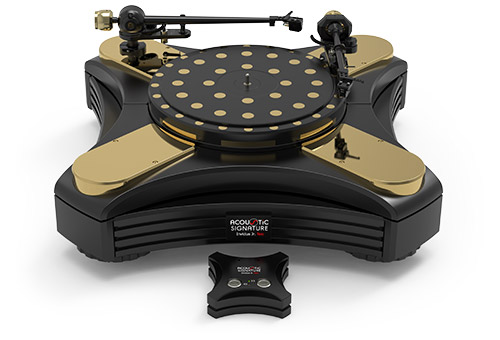

Invictus Jr. NEO in black-gold

Invictus Jr. NEO in silverblack-gold

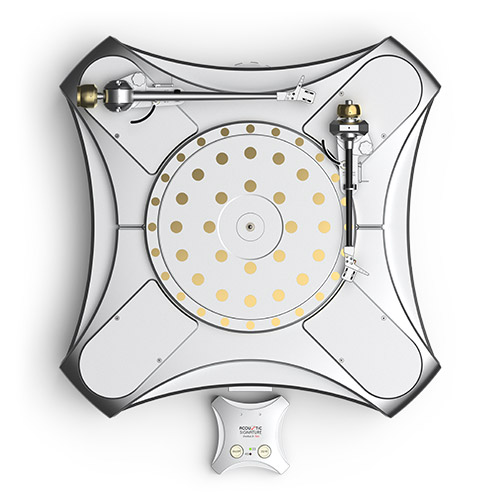

Invictus Jr. NEO in silver

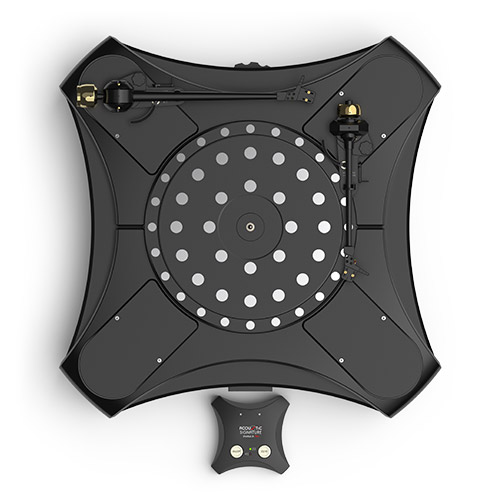

Invictus Jr. NEO in black-gold

Acoustic Signature AVC - Automatic Vibration Control

Acoustic Signature CLD - Constraint Layer Damping

Acoustic Signature DTD - Dura Turn Diamond Bearing

15 year warranty

Handmade in Germany

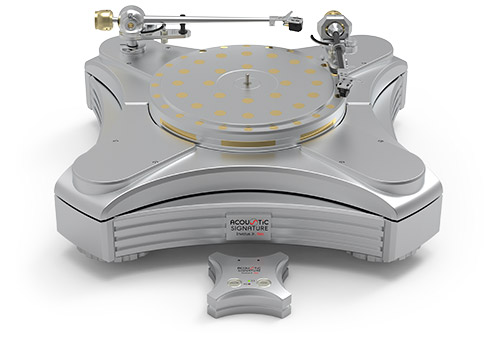

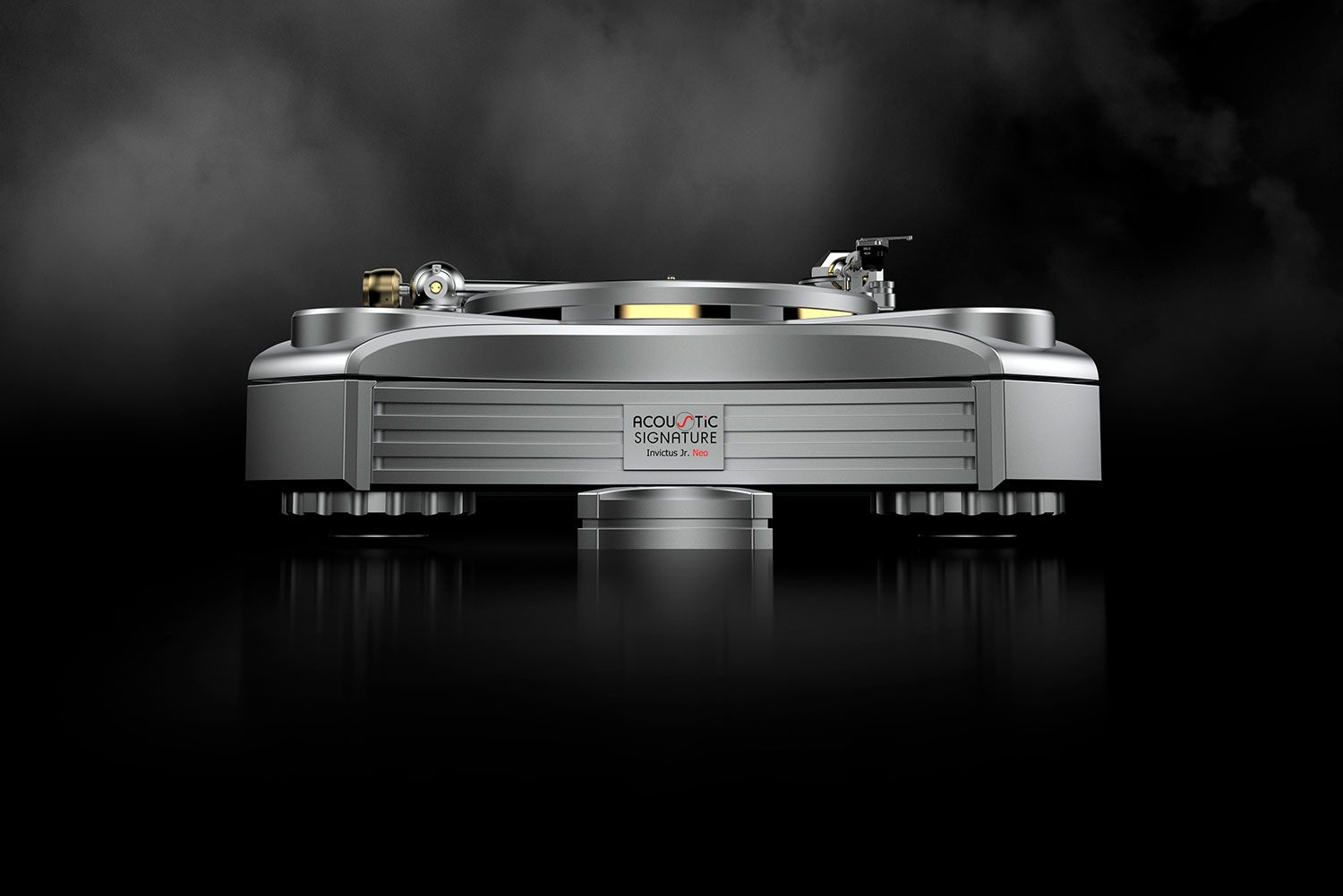

Frontview of the Acoustic Signature Invictus Jr. NEO in silver

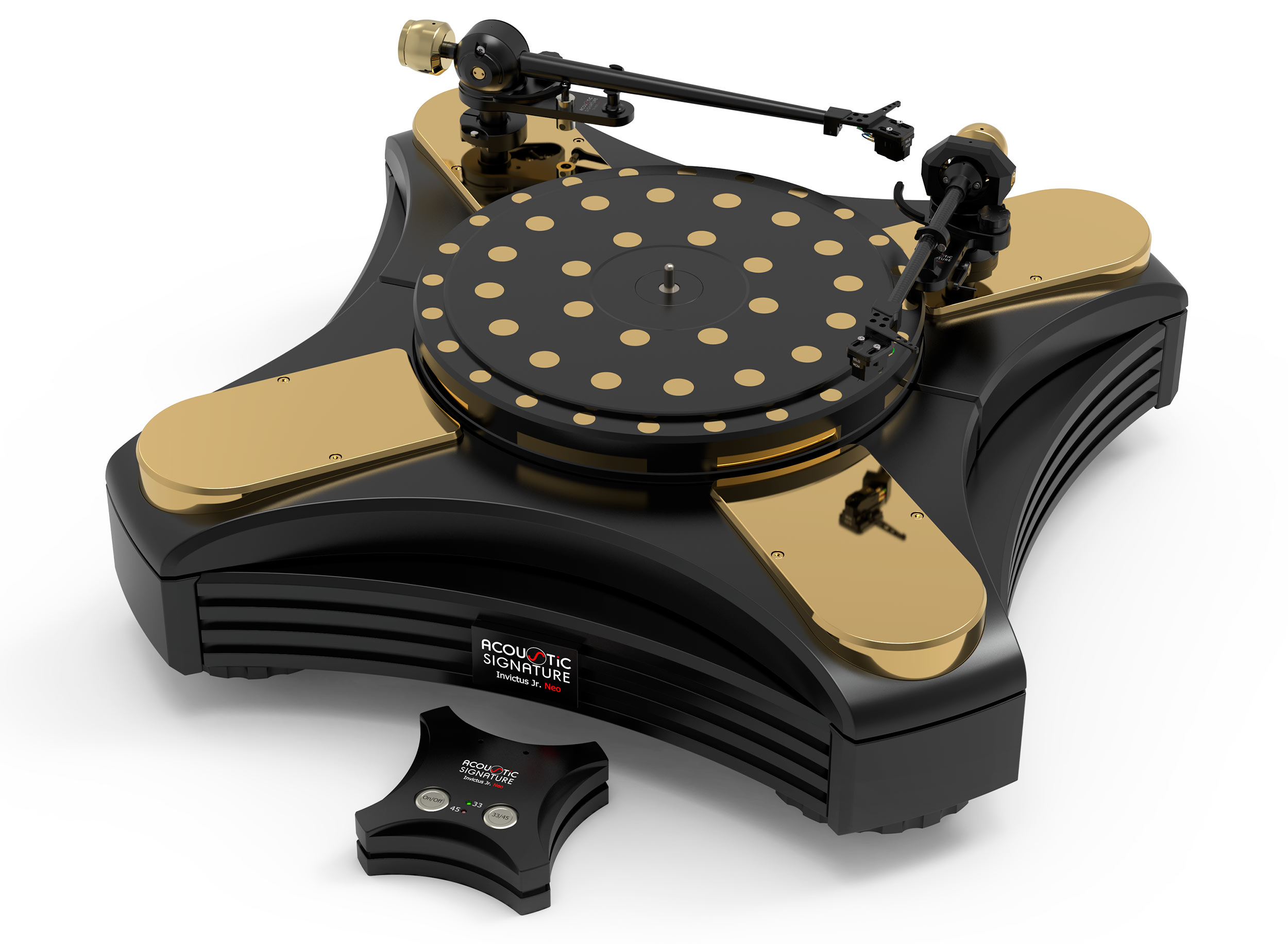

Acoustic Signature Invictus Jr. NEO in black-gold from a sideangled top-view

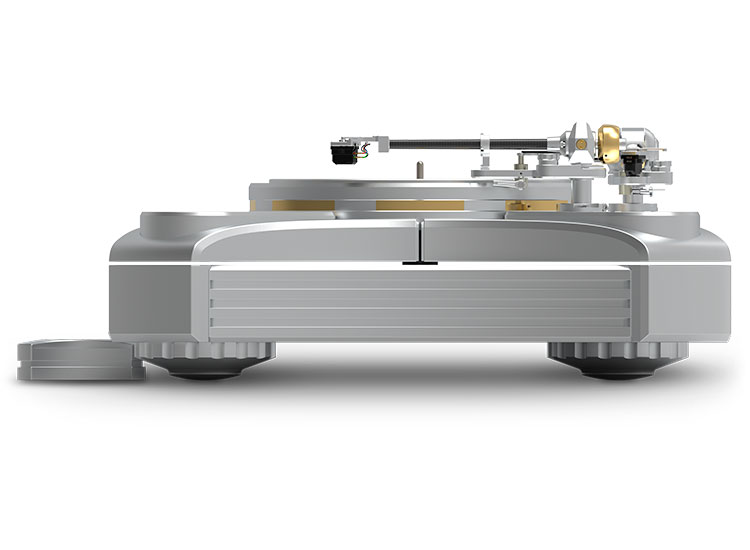

Acoustic Signature Invictus Jr. NEO, silver, sideview

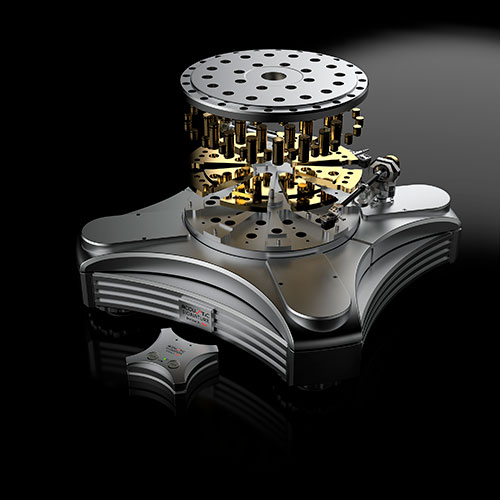

Silencer & CLD technology

Silencer & CLD technology

The 335 mm wide, over­sized aluminum platter with CLD sand­wich cons­truc­tion is designed with special brass spacers and a total of 56 silencer modules. The platter alone already weighs in at 16.5 kilograms.

more on CLD…

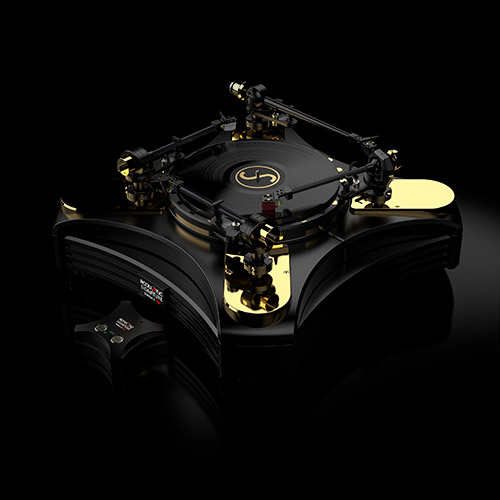

Maximum audiophile configuration

Maximum audiophile configuration

Up to four tonearms from 9 to 12 inches length can be mounted on the Invictus Jr. NEO.

the tonearms…

4 motors

4 motors

Four integrated, completely insulated AC-motors power the 16,5 kilogram heavy platter of the Invictus Jr. NEO via a subplatter drive. The turntable performs on the highest level 3 of the AVC tech­nology (Automatic Vibration Control).

AVC technology…

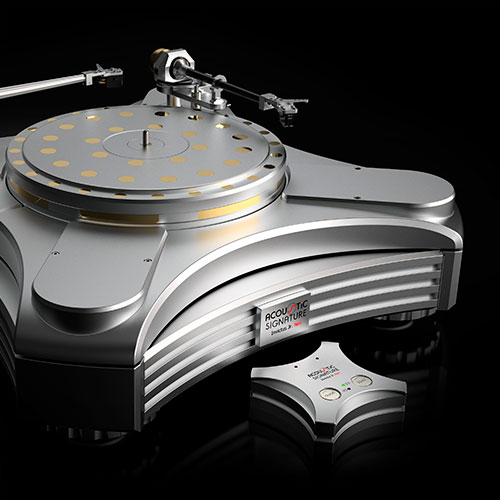

Aesthetics and flexibility

Aesthetics and flexibility

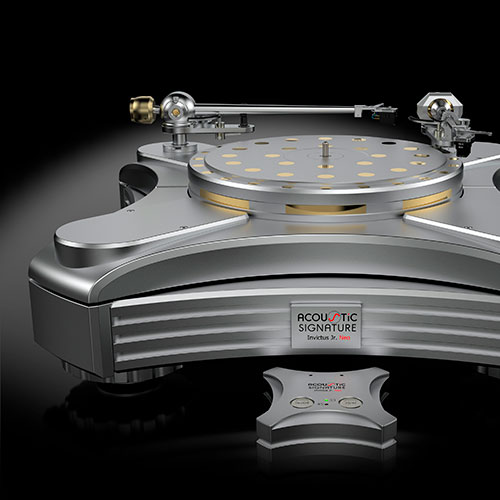

The external, freely position­able control panel of the Invictus Jr. NEO blends harmo­niously with the design of the turntable.

Technical data

AC-motors:4 (completely insulated)
Drive system:RPM-regulated double belt drive with speed fine adjustment for the subplatter
AVC:Level 3
Speed range:33 1/3 RPM and
45 RPM
Power adapter:External digital motor controller DMC-20 with super stable power supply
(100 V – 260 V AC, 50 Hz.)
Optional: 24 V DC Input via XLR 5-pole connector
Control panel:External for flexi­ble placement
Bearing:High-precision Dura Turn Diamond® bearing
Tone arm base:Adjustable arm­base,
exchangeable armboard for various tonearms
Tone arm compati­bility:9 to 12 inch
Maximum number of tone arms:4
Platter:50 mm anodized aluminum sandwich platter base
with brass layer and Silen­cer modules
(Ø 335 x 50 mm / 16.5 kg)
Silencer:56
Chassis:93 mm aluminum alloy
Feet:3 height-adjustable gel-damped aluminum feet
Dimen­sions (WxDxH):608 x 608 x 224 mm
Weight:ca. 108 kg

Available finishes

Chassis and platter:silver (anodized),
black (anodized) with 24K gold plated components,
plain black (anodized) version upon request
Silencer:Polished brass,
optional: 24 carat gold-plated or polished chrome

Package contents

  • Invictus Jr. NEO chassis
  • Platter
  • Subplatter
  • Base plate
  • Arm­base
  • External control panel
  • External power supply DMC-20
  • Power cord
  • Patch cables
  • 4 drive belts
  • Tool set
  • Leather mat
  • Gloves
  • Instruction manual

Warranty

15 year warranty

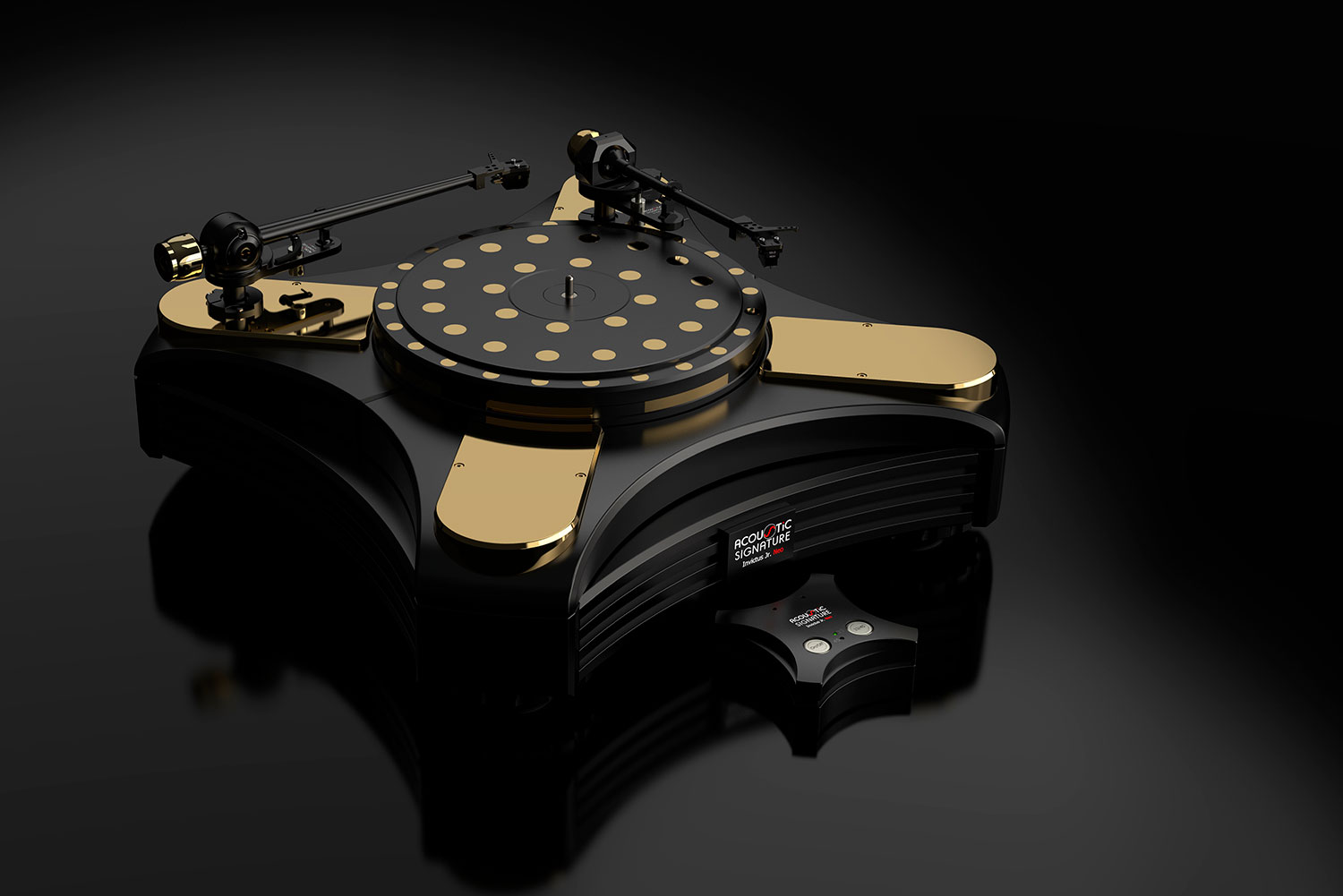

Invictus Jr. NEO in gold-black

Gold-black finish

For those who don’t want to settle for less than the best: The Invictus Jr. NEO is avai­lable with a special finish upgrade made of black (ano­dized) compo­nents com­bined with 24K gold-plated ele­ments. The silencer modules have a 24 carat gold-plated option, too.
